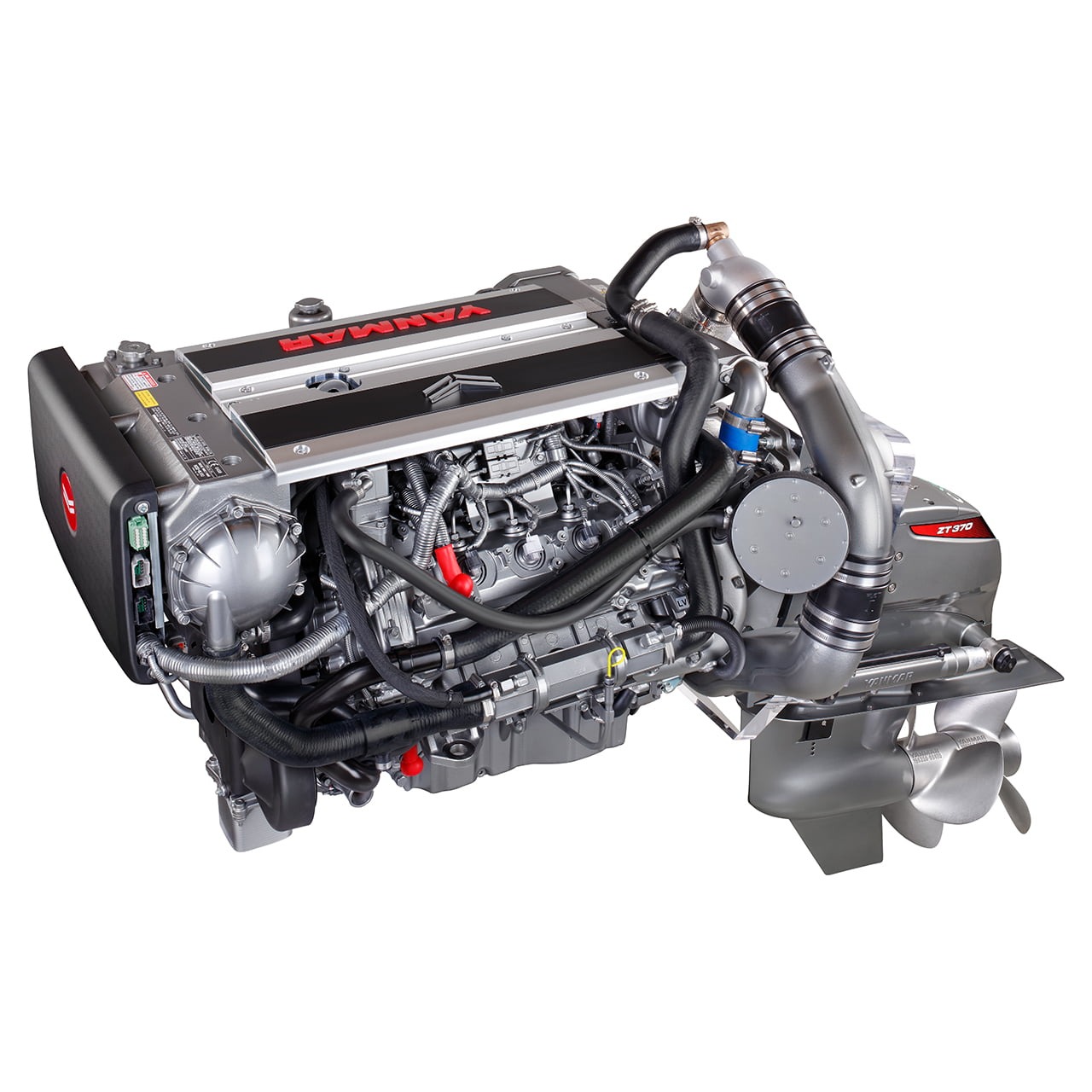

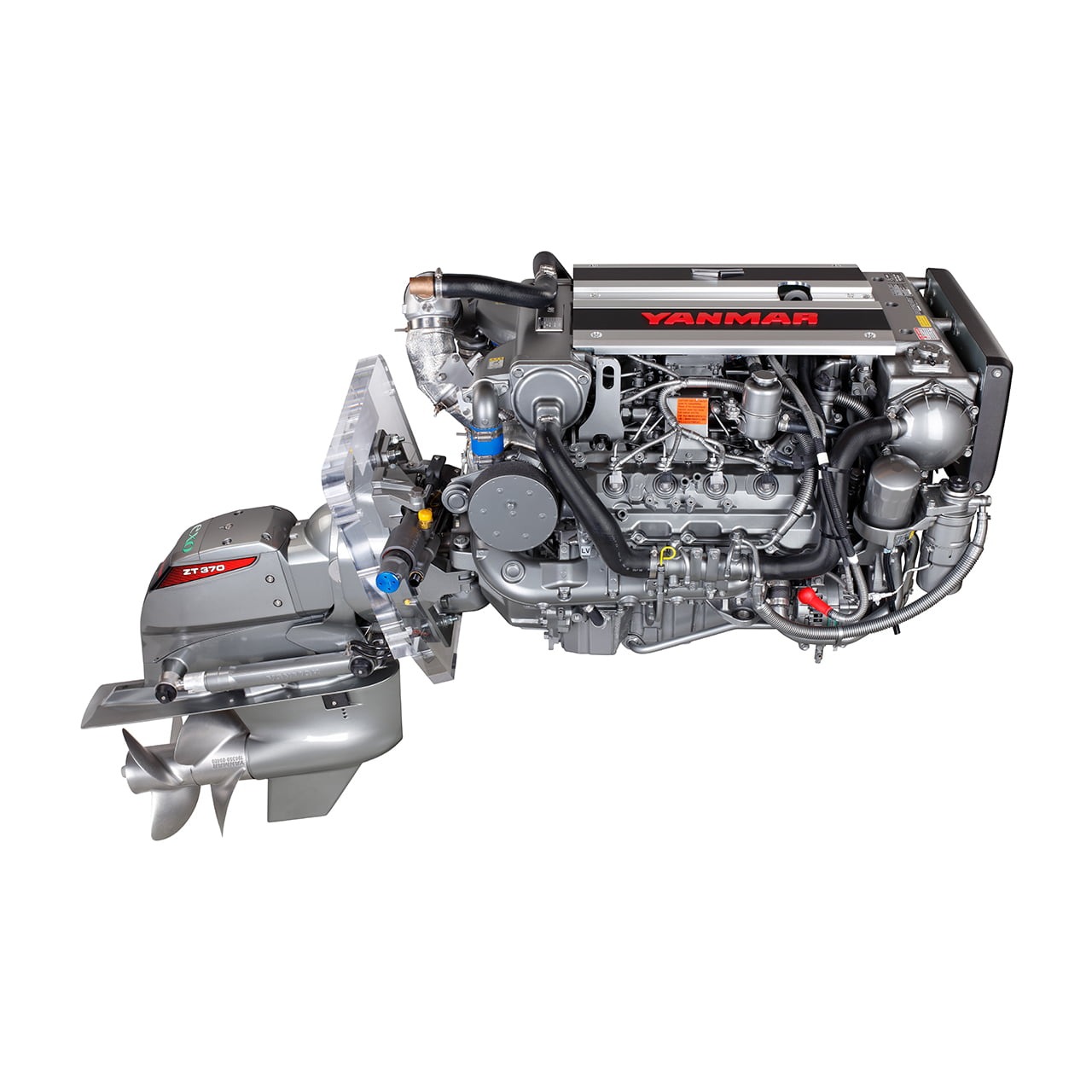

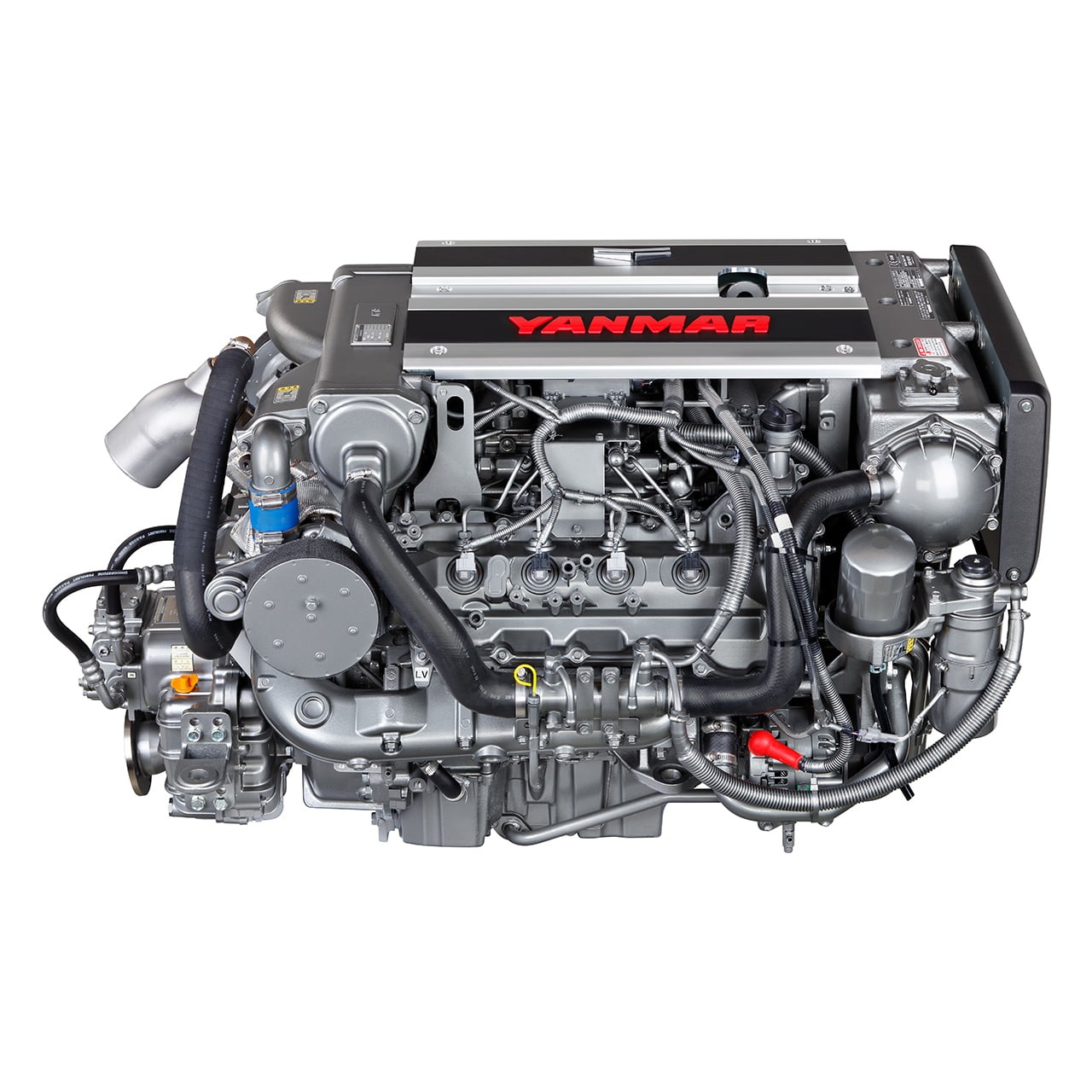

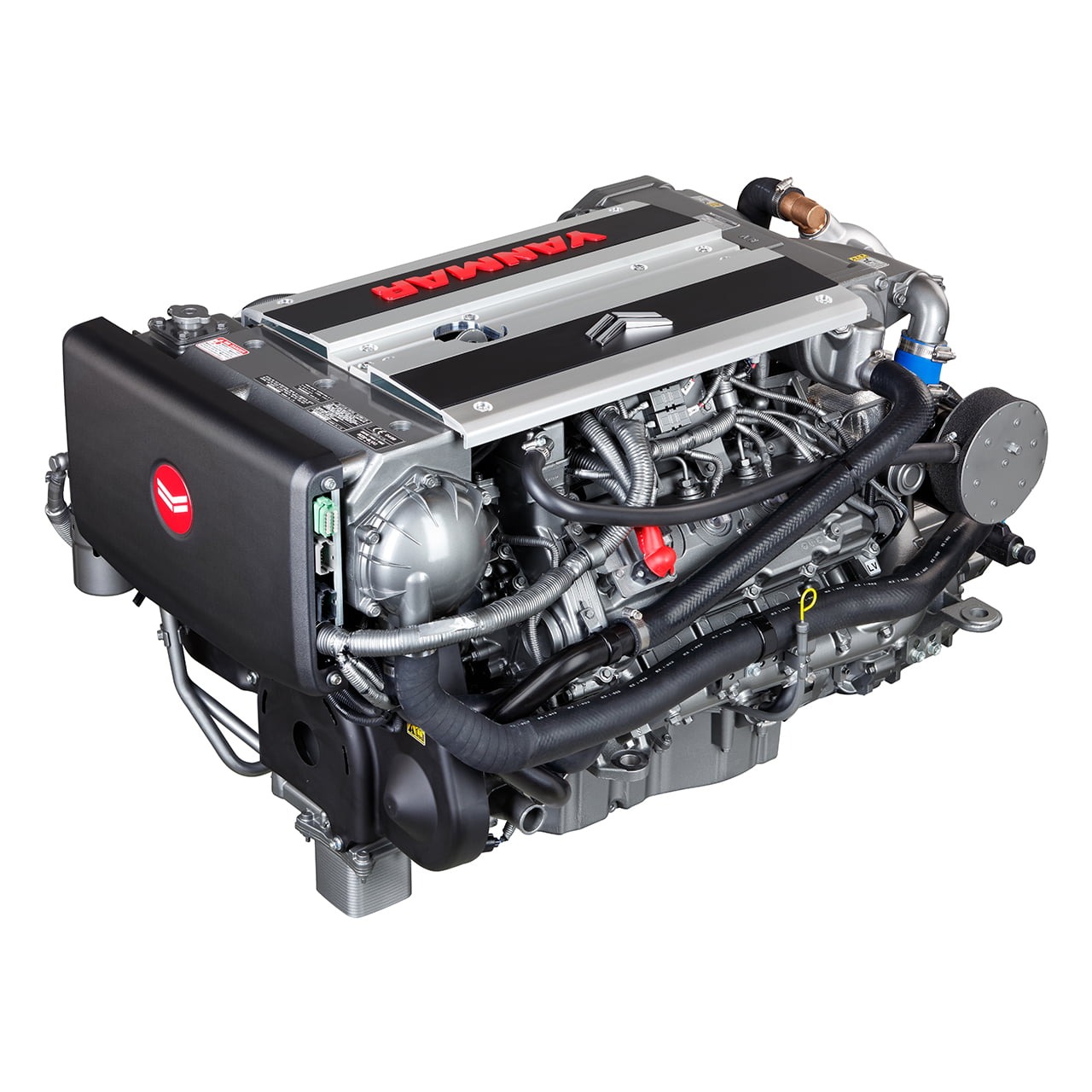

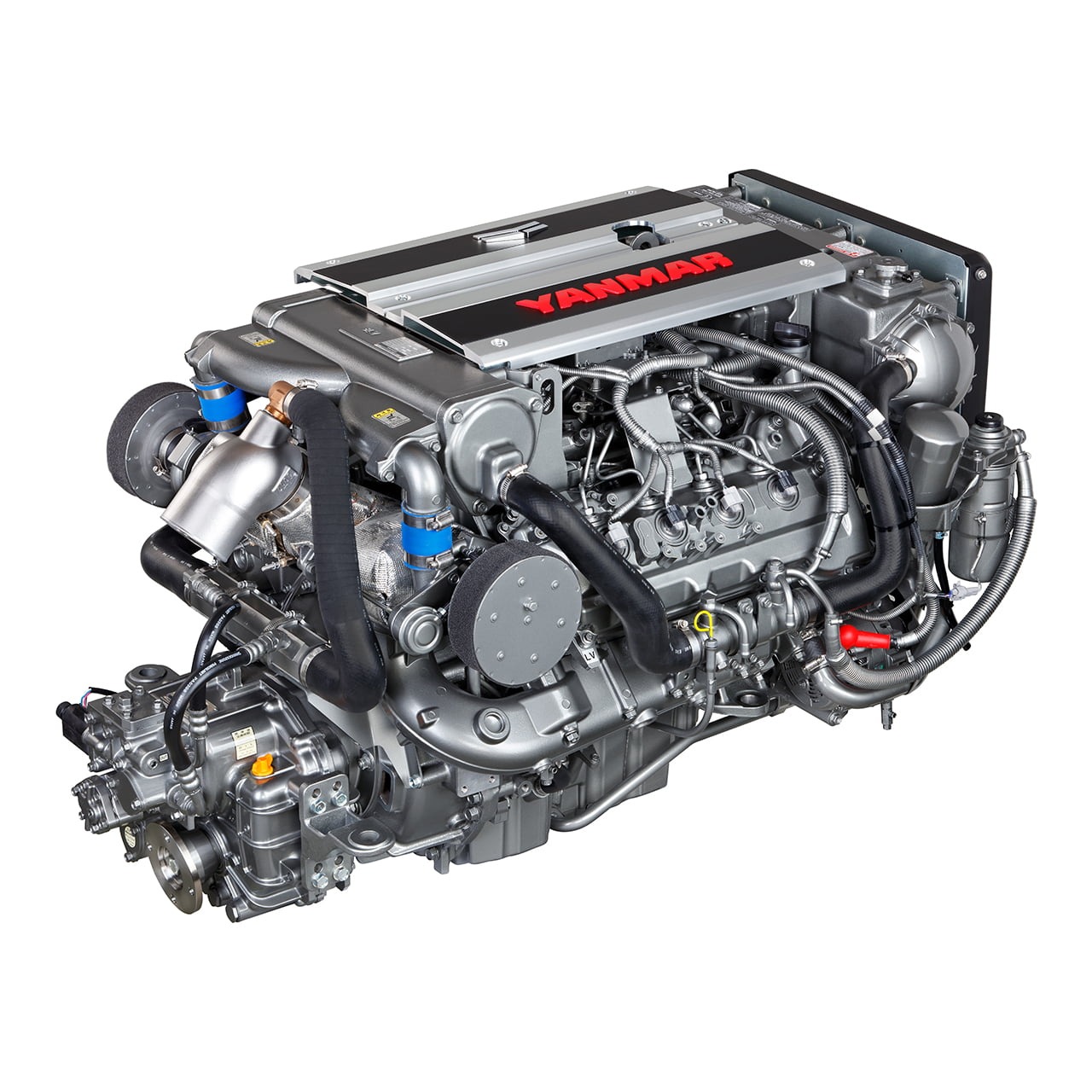

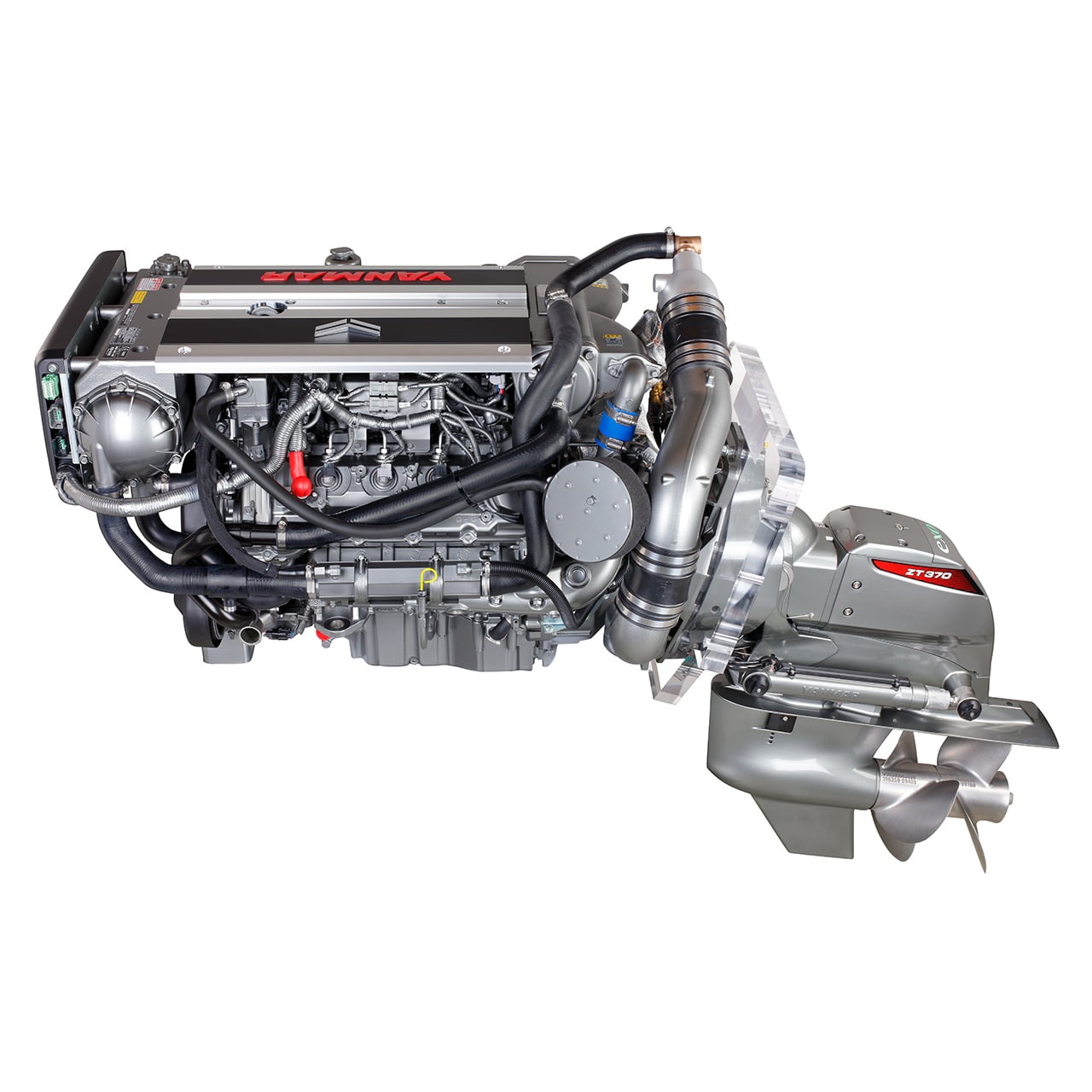

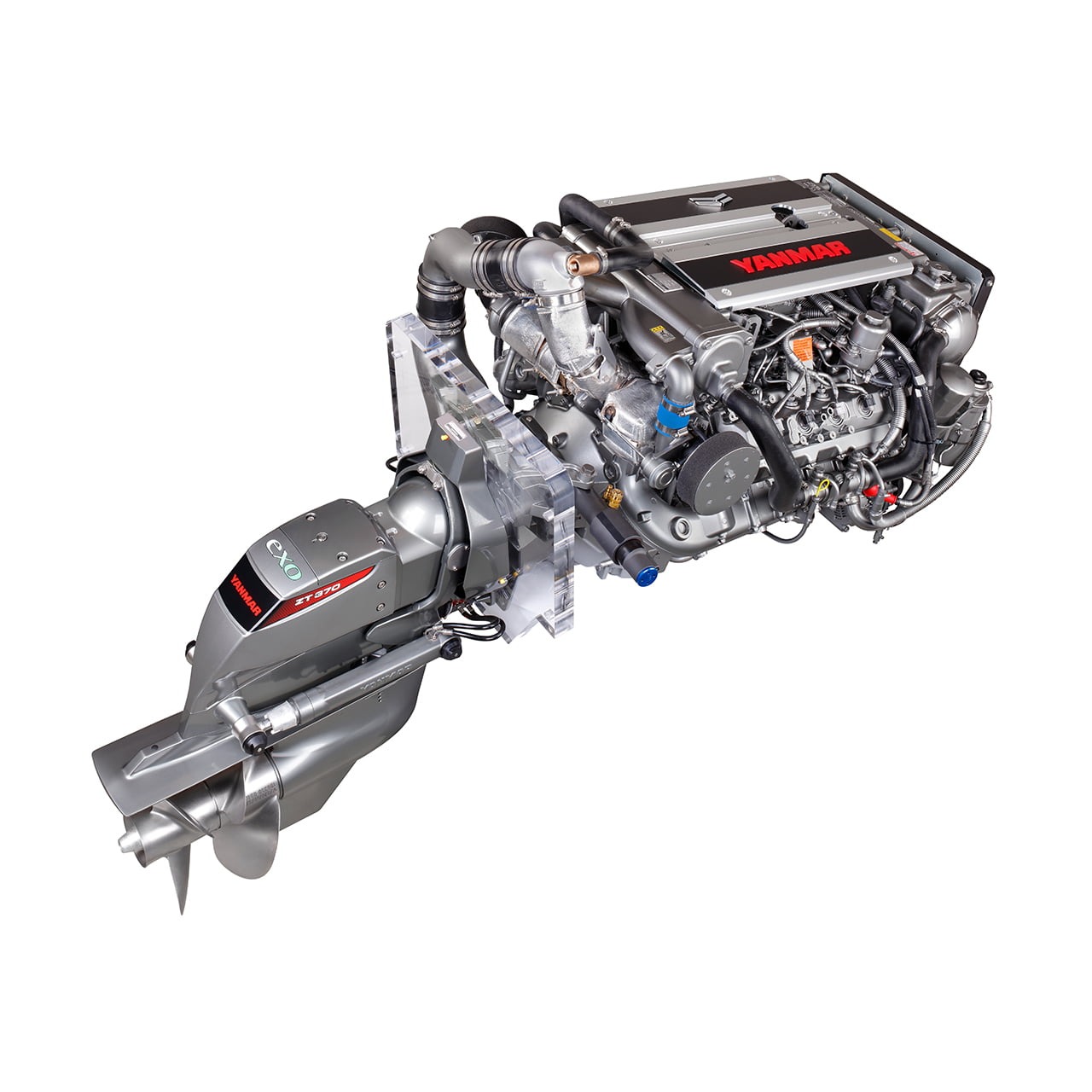

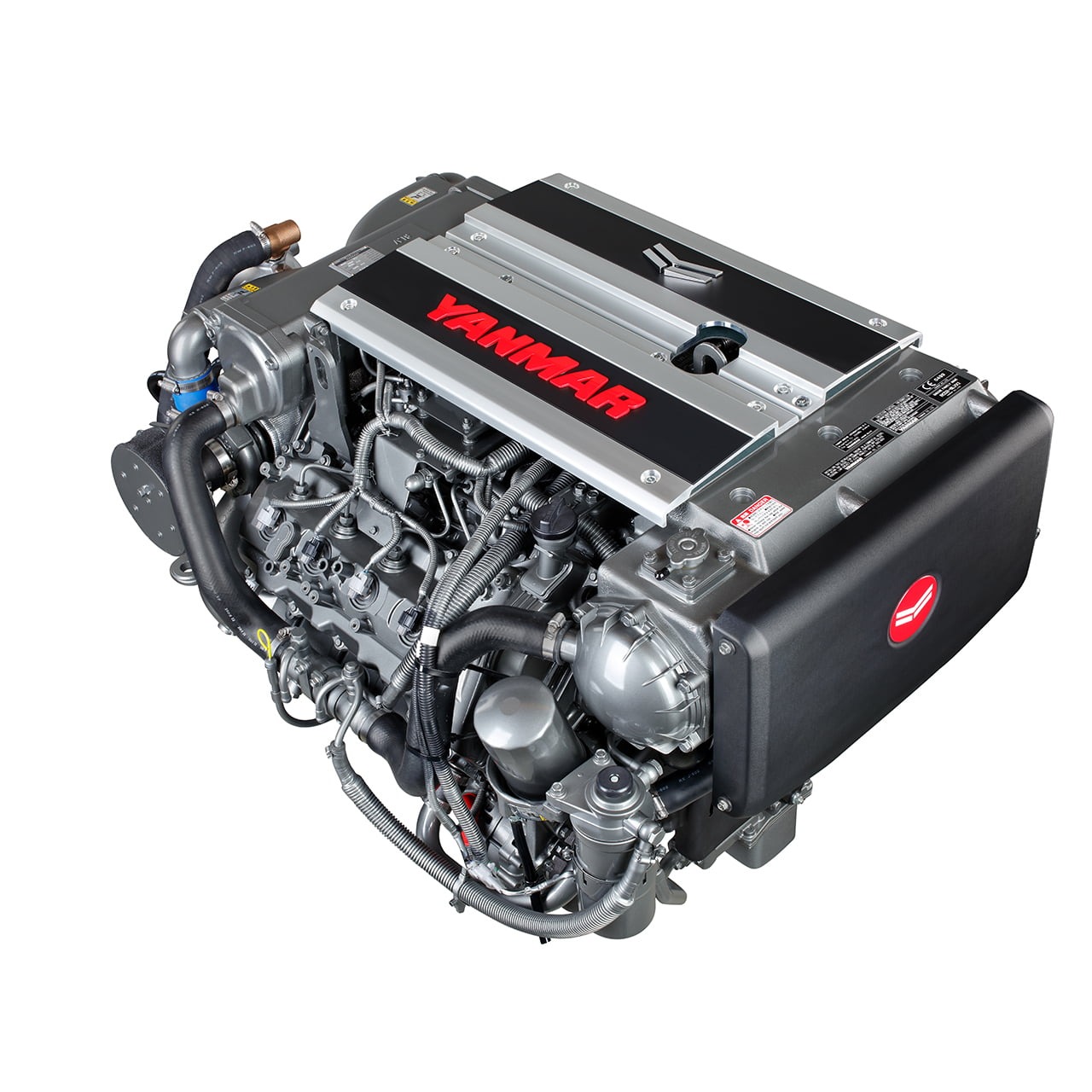

YANMAR 8LV370 (Z) Marine Engine
YANMAR 8LV370 (Z) Marine Engine
Specifications
Rated output272 kW / 370 mhp
Rated Speed3800 rpm
Displacement4.46 L / 272 cu. in
No. of cylinders8 cylinders
Cylinder Bore x Stroke86 mm x 96 mm / 3.38 in x 3.78 in
Combustion systemDirect Injection, Denso Common Rail System
AspirationTwin Turbocharged & Intercooled
Alternator12V – 180A
Dry weight without gear435 kg / 959 lbs
Dimensions1340 mm x 880 mm x 766 mm
ControlsElectronic
CertificationsRCD 2 IMO Tier 2 EPA Tier 3 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Dimensions includes KMH50A gearbox with standard mixing elbow
Measured with through drive exhaust, without sterndrive (1043mm x 886mm x 1198mm)
(Dimensions may vary with other gears/elbow)
*Please note, the 8LV370 is not EPA Commercial certified.
HVO-approved engineDescription
YANMAR 8LV370 (Z) Marine Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]*
- Through drive exhaust**
- Alternator 12V – 180A
- Power steering**
- Flexible mounts
- Fresh water expansion tank
*Inboard model
**Sterndrive model
Optional Accessories
- High-riser mixing elbow [instead of L–elbow]*
- Through hull exhaust**
- Extension harness [3m, 5m, 10m]
- Second station
- NMEA2000 Engine monitoring system
- SOLAS including Certificate [factory fit only]
- Hot water connection
- Water separator
- Front PTO pully [V–belt type A or B]
- Power steering pump*
- Power steering cooler*
- Electric shift**
- Exhaust cooling water bypass
- Lube oil drain pump
- Bilge pump [12V]
