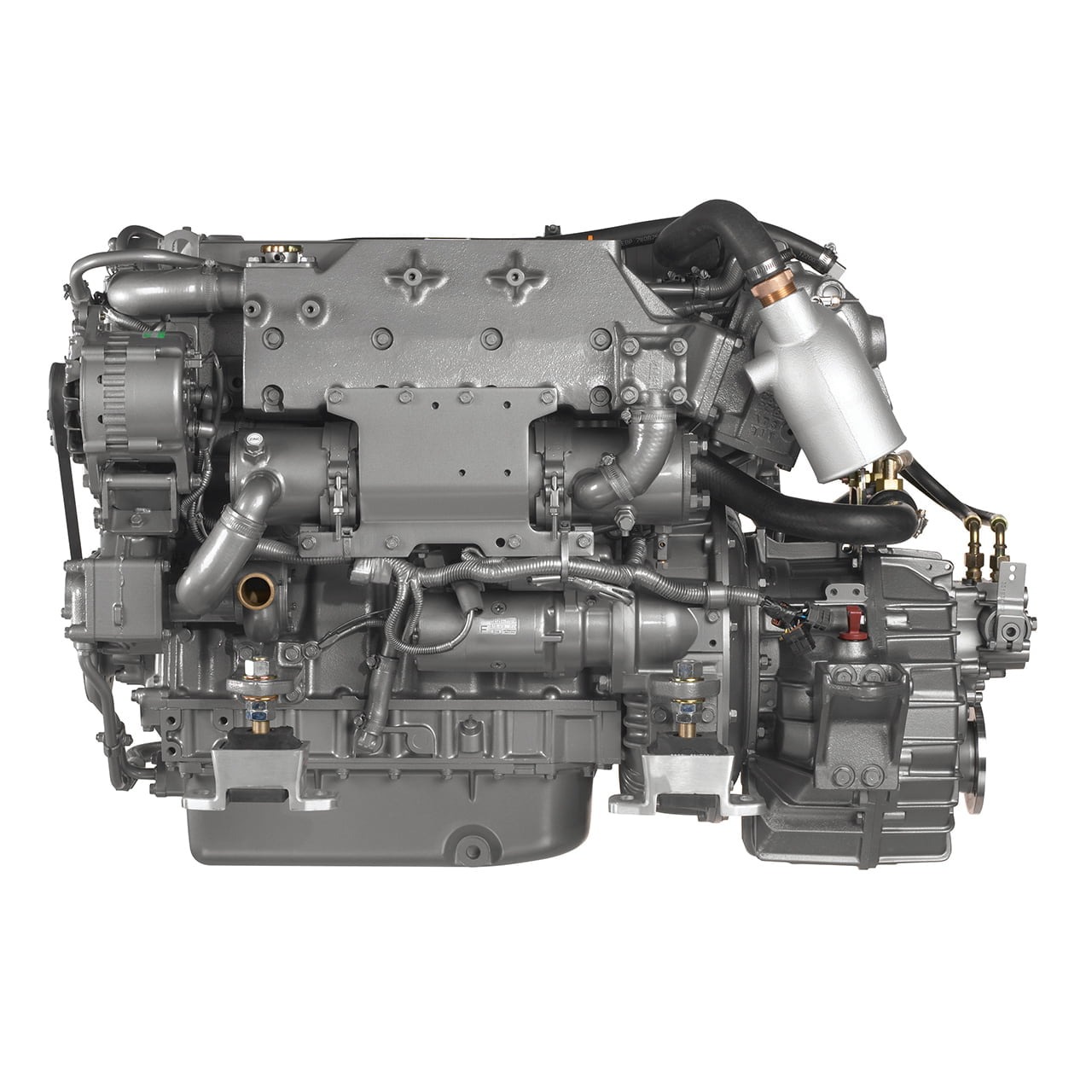

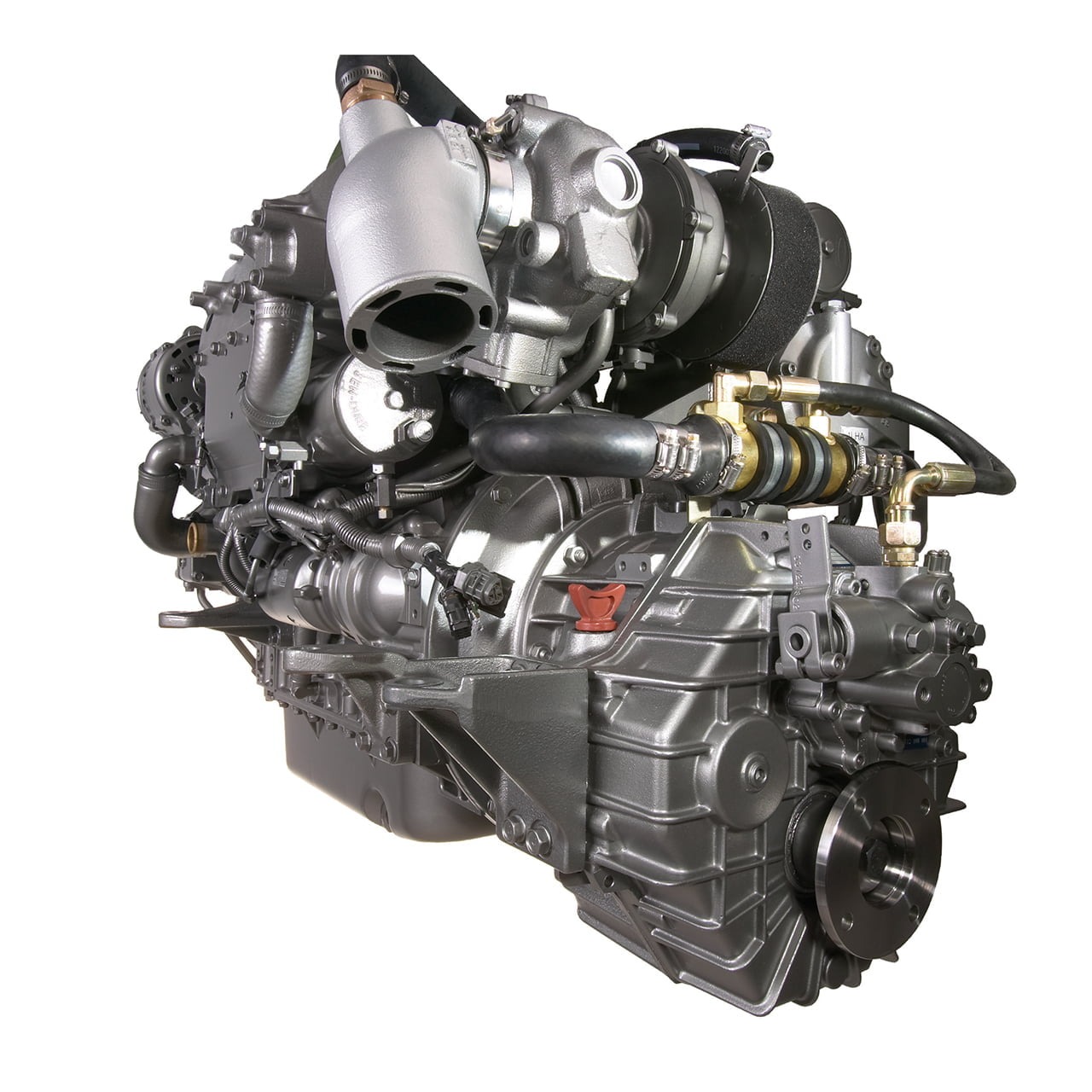

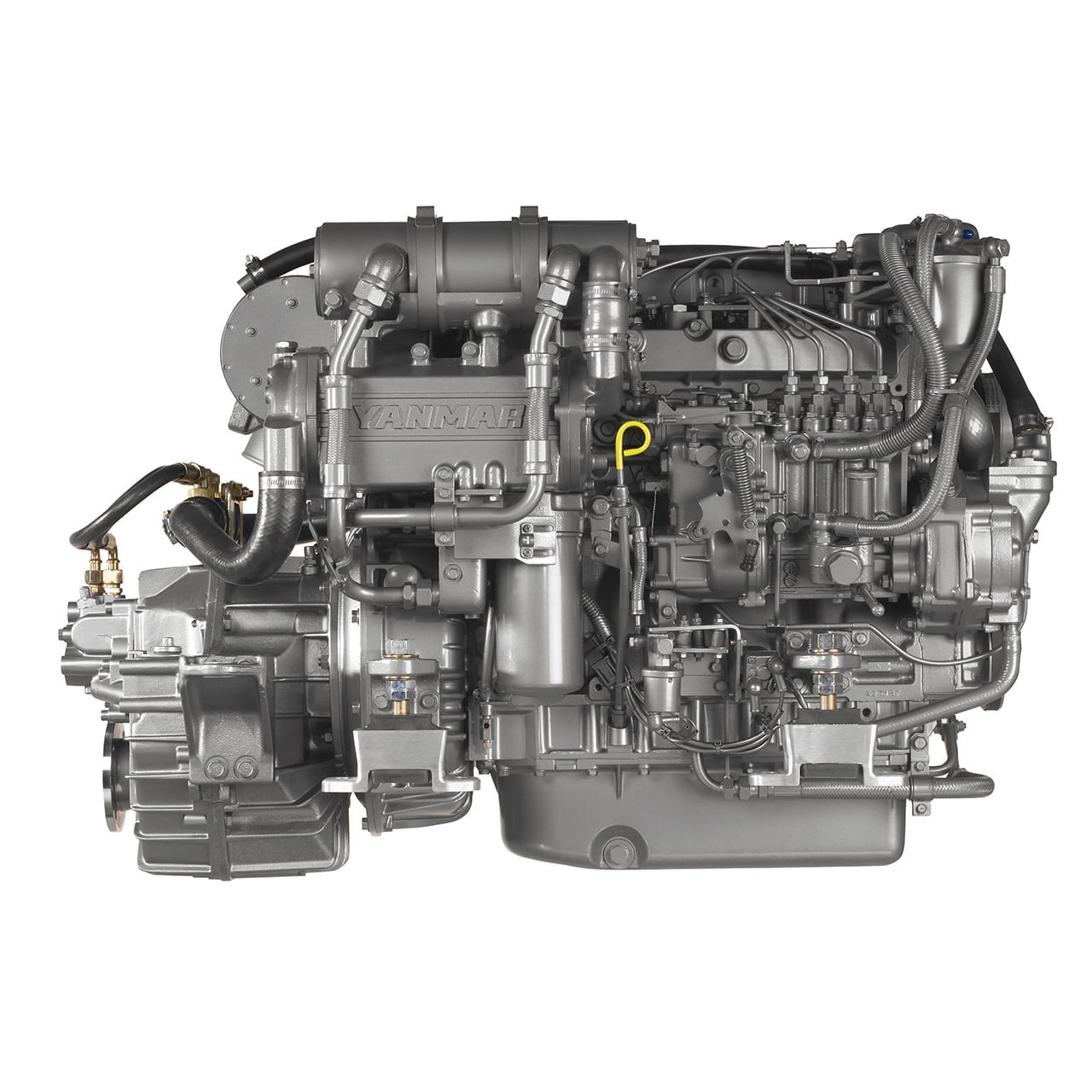

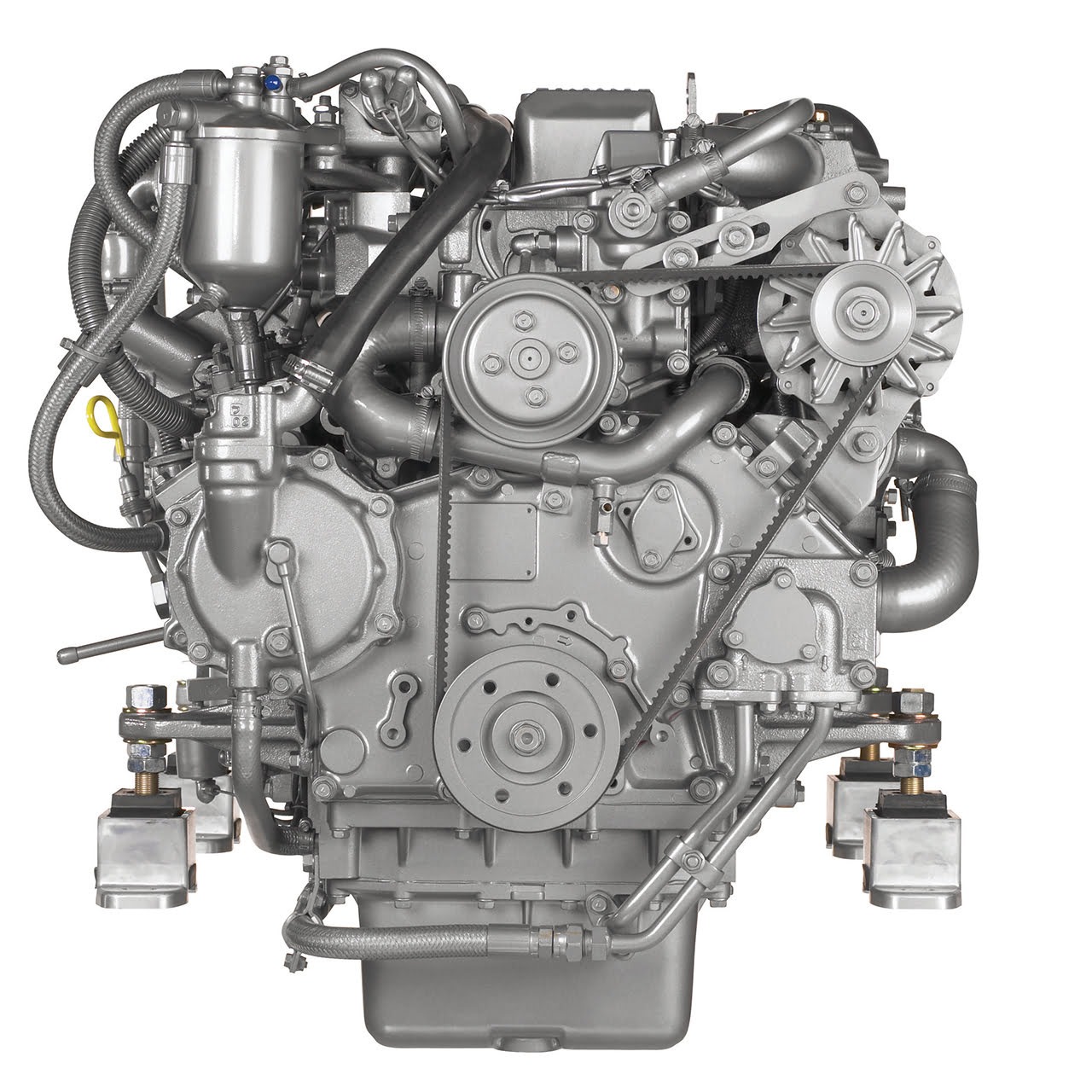

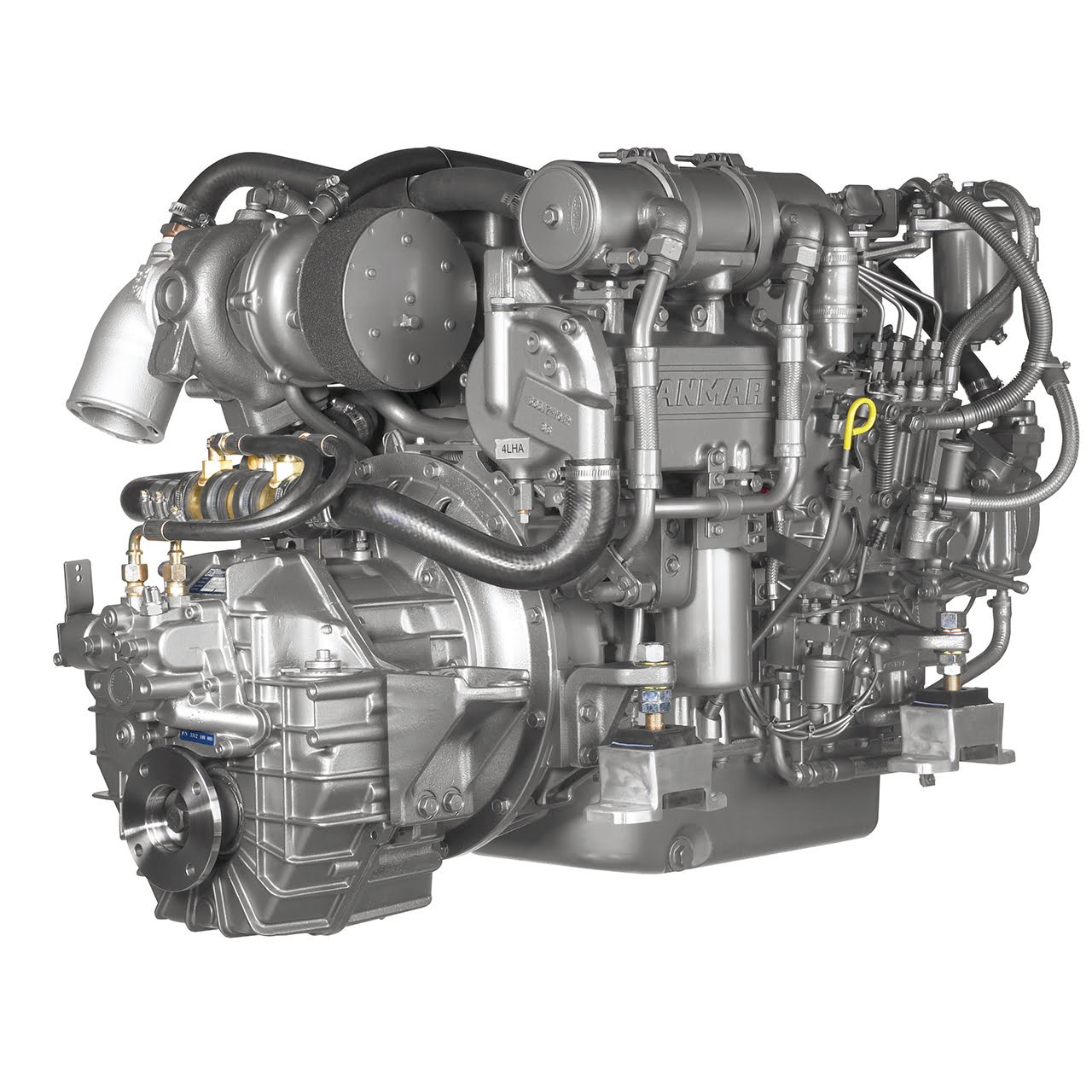

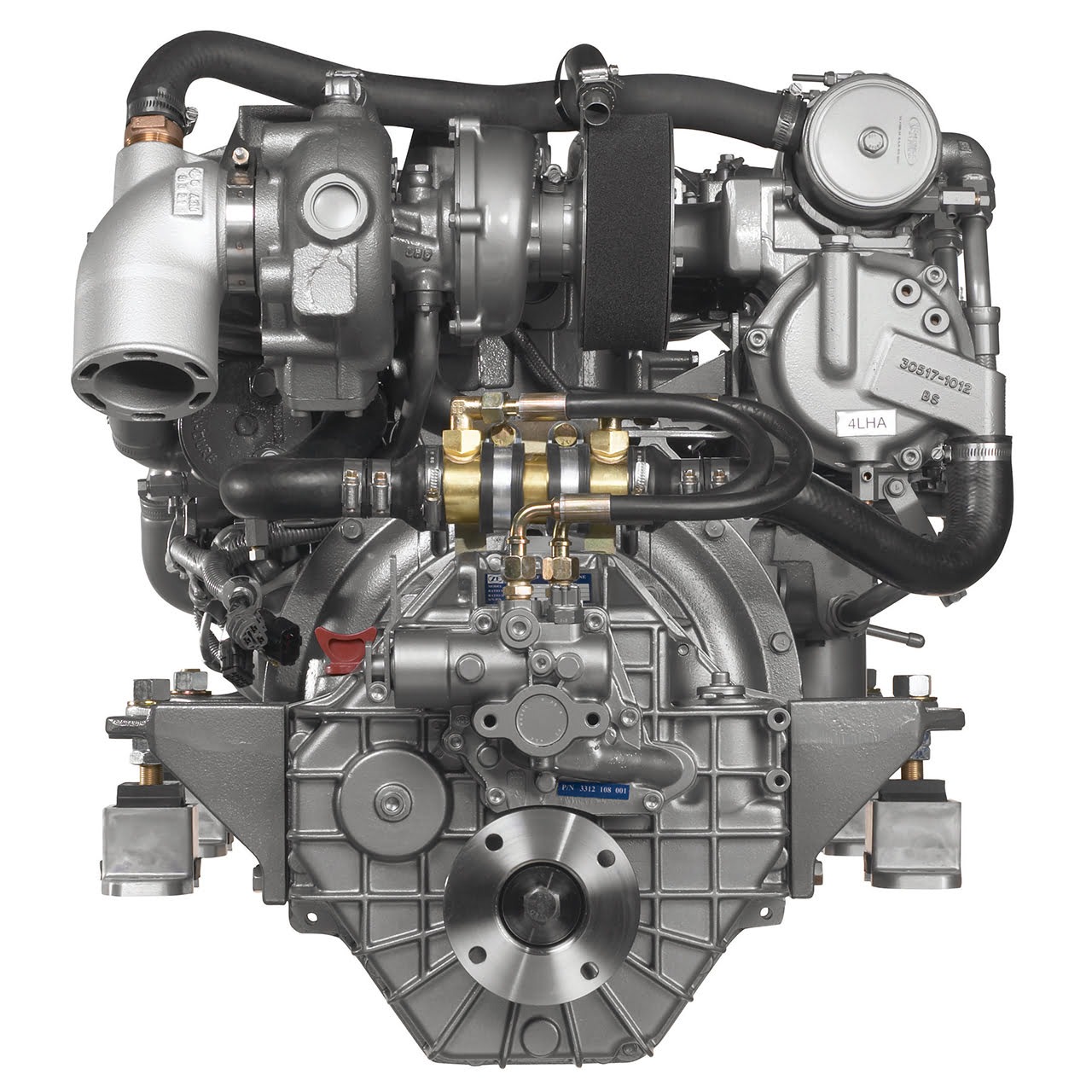

YANMAR 4LHA-HTP (Z) Marine Engine
YANMAR 4LHA-HTP (Z) Marine Engine
Specifications
Rated output118 kW / 160 mhp
Rated Speed3300 rpm
Displacement3.455 L / 211 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke100 mm x 110 mm / 3.94 in x 4.25 in
Combustion systemDirect Injection, VE Rotary Pump
AspirationTurbocharged & Intercooled
Alternator12V – 80A
Dry weight without gear342 kg / 754 lbs
Dimensions1131 mm x 719 mm x 811 mm
ControlsMechanical
CertificationsRCD 1 BSO II EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Dimensions include KMH50A gearbox and L–type elbow
(Dimensions may vary with other gears/elbow)
Description
YANMAR 4LHA-HTP (Z) Marine Engine
Performance Curves
Technical Drawings
