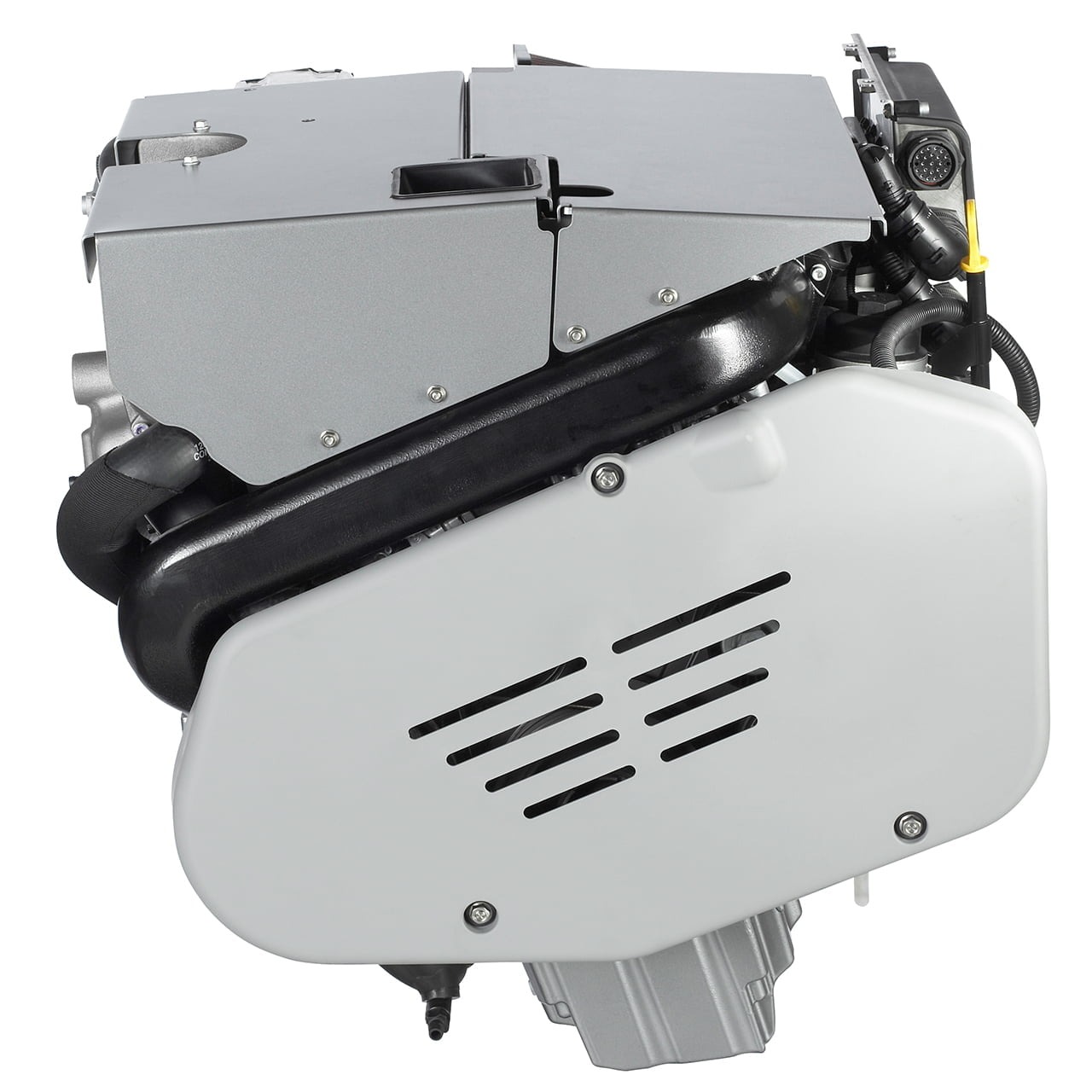

YANMAR 4BY3-180 (Z) Marine Engine
YANMAR 4BY3-180 (Z) Marine Engine
Specifications
Rated output132 kW / 180 mhp
Rated Speed4000 rpm
Displacement1.995 L / 121.7 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke84 mm x 90 mm / 3.31 in x 3.54 in
Combustion systemDirect Injection, Bosch Common Rail System
AspirationTurbocharged & Intercooled
Alternator12V – 150A
Dry weight without gear263 kg / 580 lbs
Dimensions949 mm x 767 mm x 713 mm
ControlsClassic (Hybrid) & Unlimited (Electronic)
CertificationsRCD 2 EPA Tier 3 BSO II EMC
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Dimensions shown with KMH41A gearbox and L-type elbow
Sterndrive model dimensions (does not include sterndrive) (870mm x 770mm x 785mm)
(Dimensions may vary with other gears/elbow)
Description
YANMAR 4BY3-180 (Z) Marine Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- Single pole, 150A Alternator
- Exhaust mixing elbow [L-type]
- Automatic glow-plug controller
- Flexible mounts
- Analogue throttle with redundancy function
