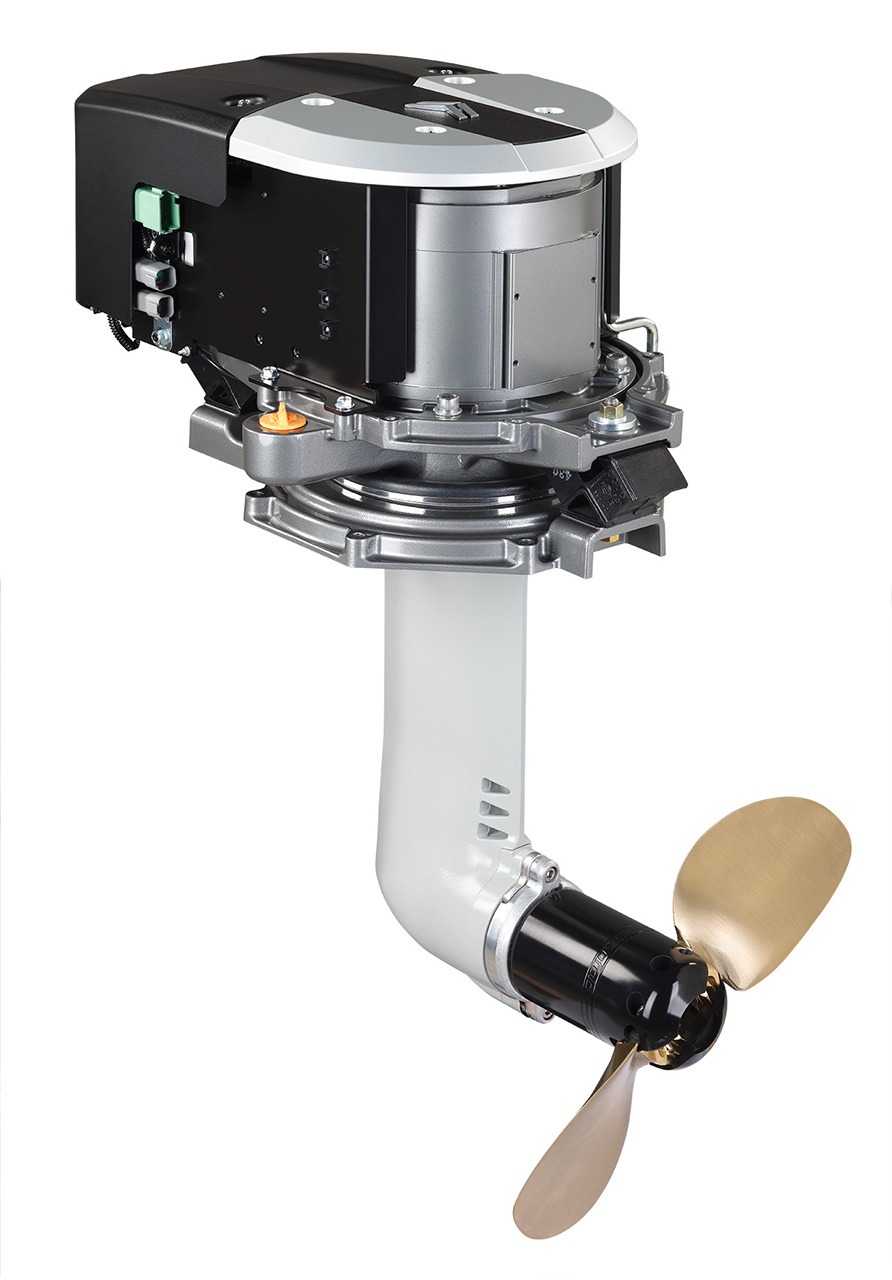

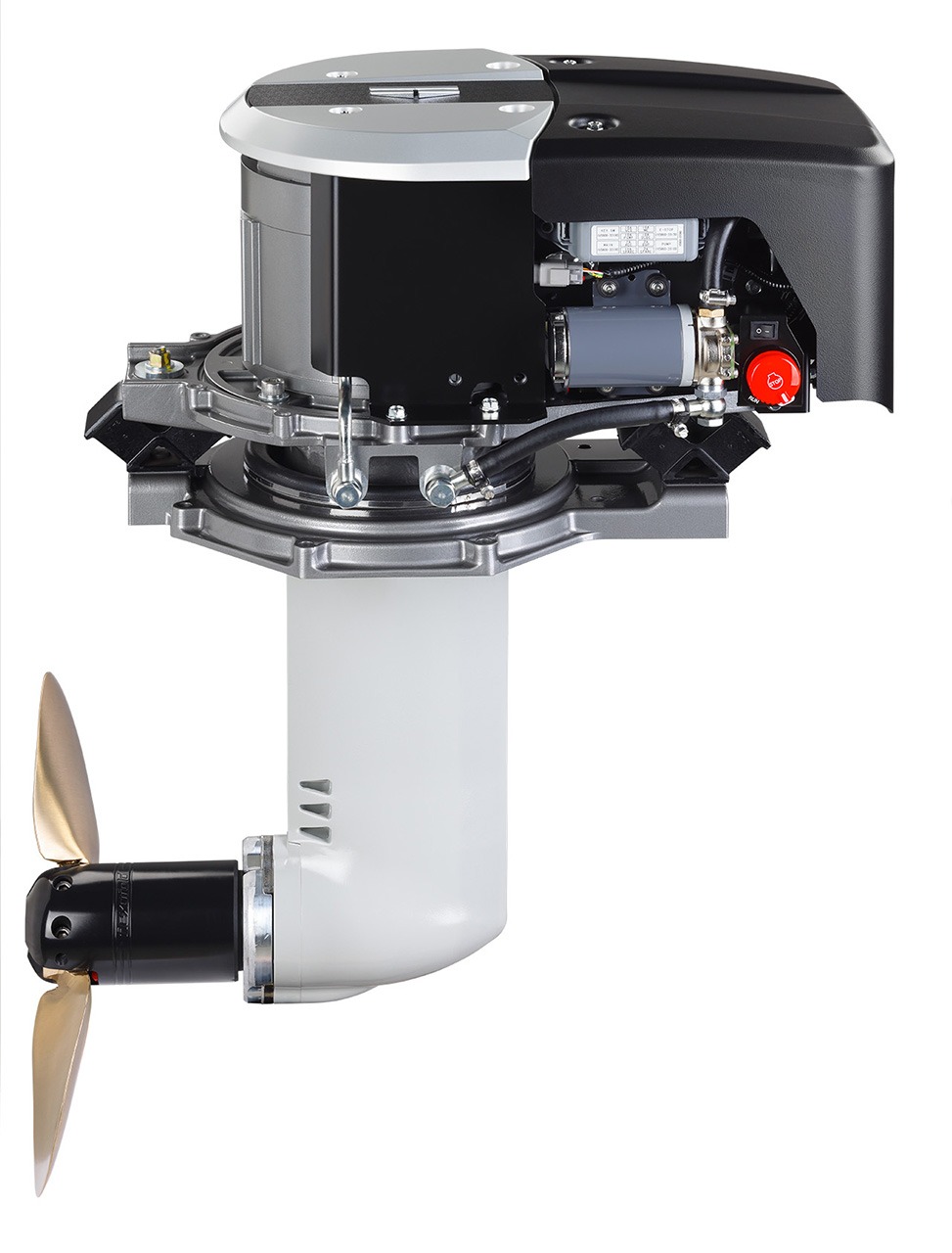

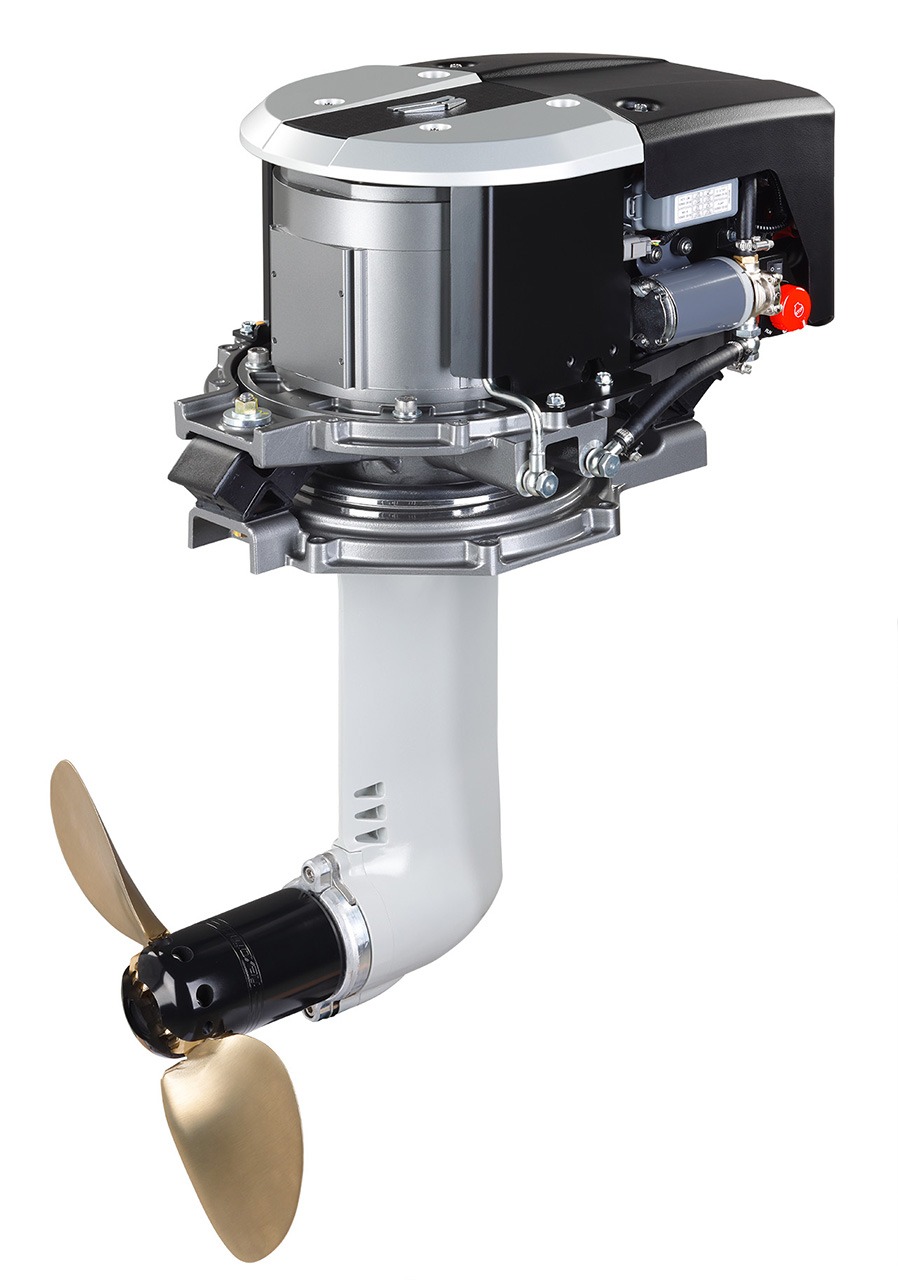

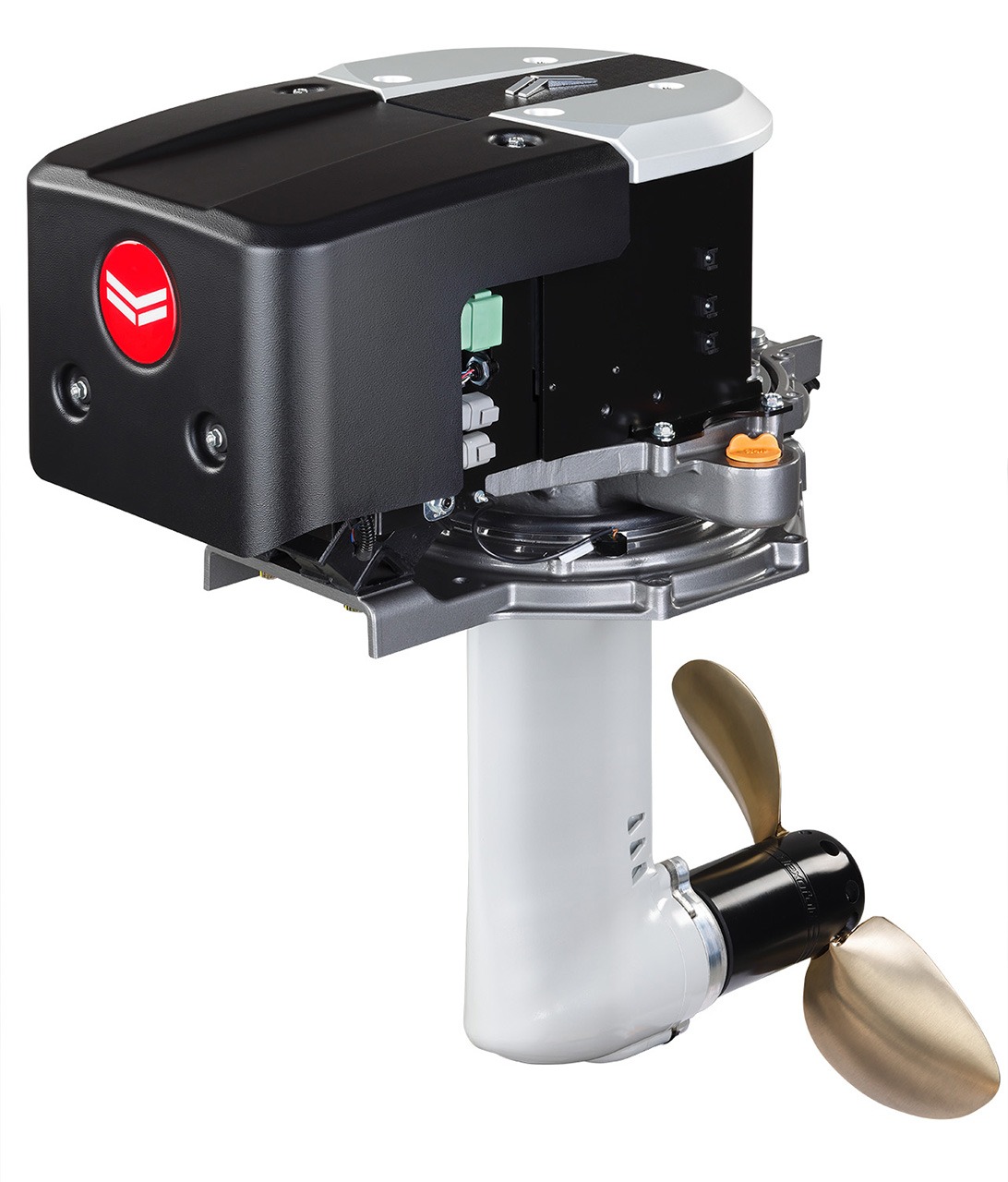

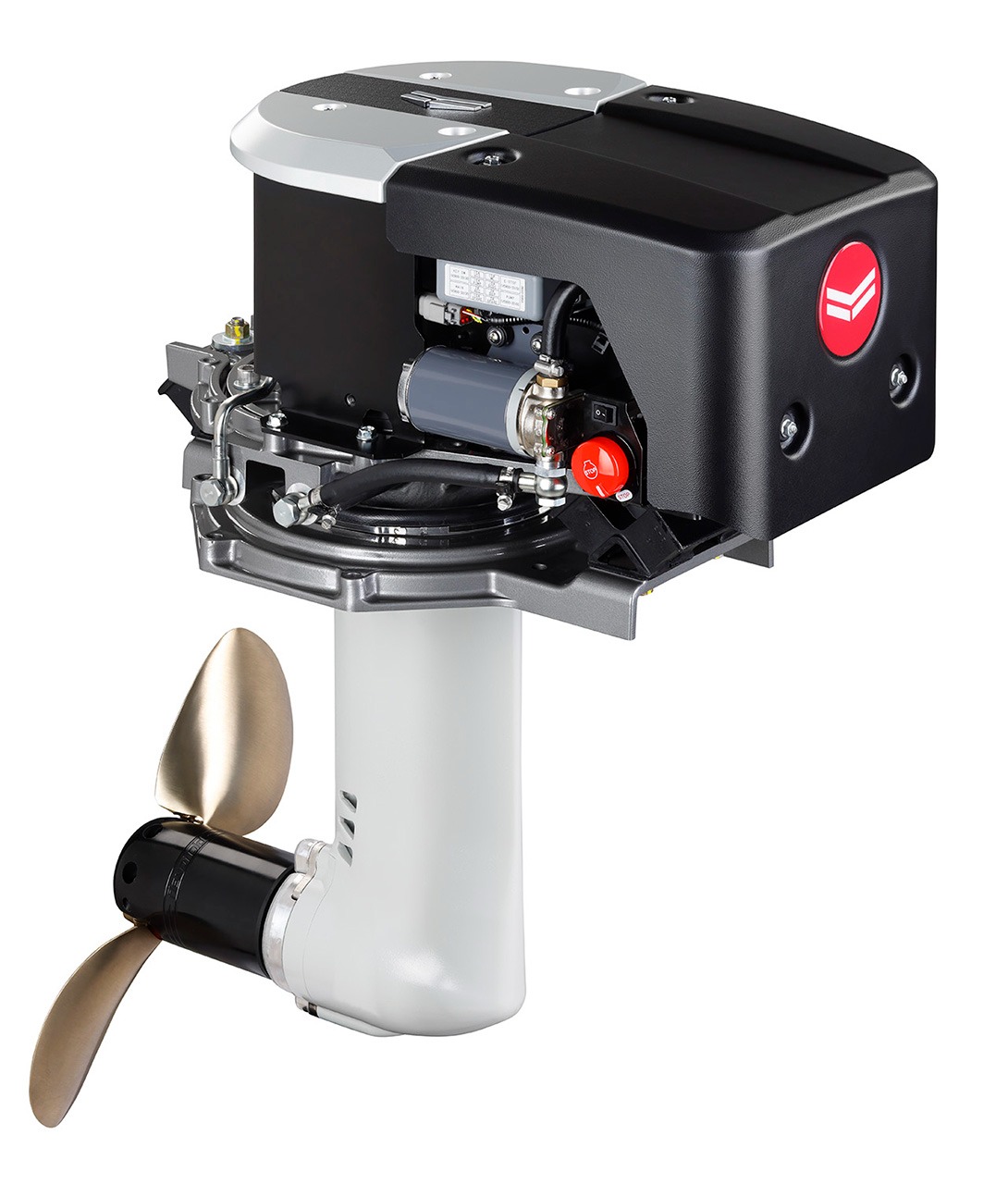

Buy YANMAR SDe7 Saildrive

Buy YANMAR SDe7 Saildrive

Specifications

Rated output7 kW / 9.5 mhp
Rated Speed2700 rpm
TypeSailDrive
Max Speed2900 rpm
Max Speed (Reverse Boost)3300 rpm
RatingS2-60
Gear Ratio2.13
Dry Weight68.7 kg
Dimensions (mm)758 x 636 x 424
Nominal Voltage48 VDC
Battery TechnologyLithium-ion LiFePO4

NOTE:
7 kW @2700 rpm*
Note: Battery and propeller are not included in standard delivery
S2-60 = Minimum 60 minutes at full rated output,
at sea water temperature 30 degrees C,
ambient air temperature 50 degrees C

Description

Buy YANMAR SDe7 Saildrive

Performance Curves

Technical Drawings

Packages

Standard Engine Package

• Battery cable connectors
• Display
• Control head (side mount or top mount)
• Switch panel
• Backup panel
• Harnesses [3m, 5m, 10m, 20m]
• Terminator

Optional Accessories

• E-stop switch
• CAN cables
• Lanyard switch
• Battery
• Propeller
