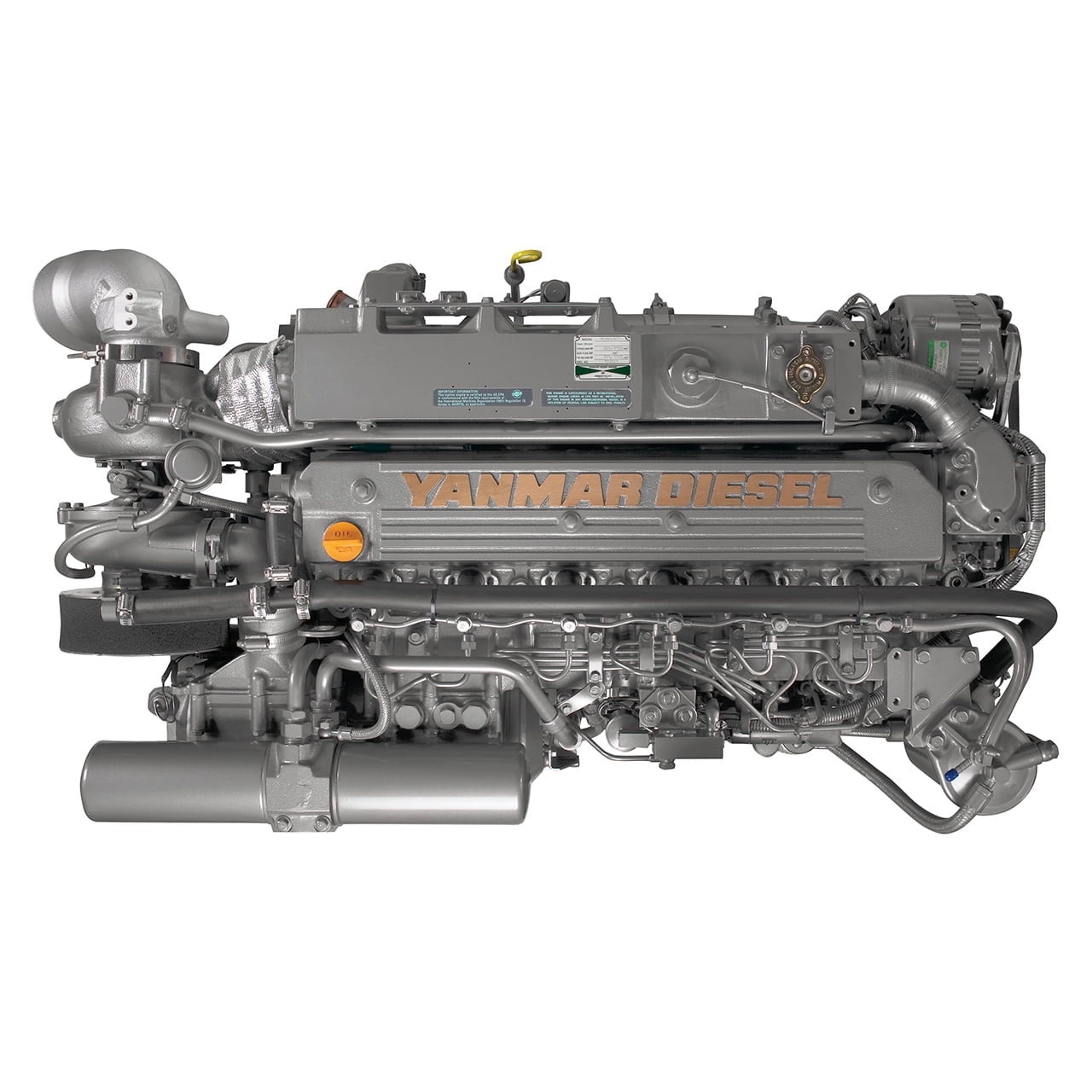

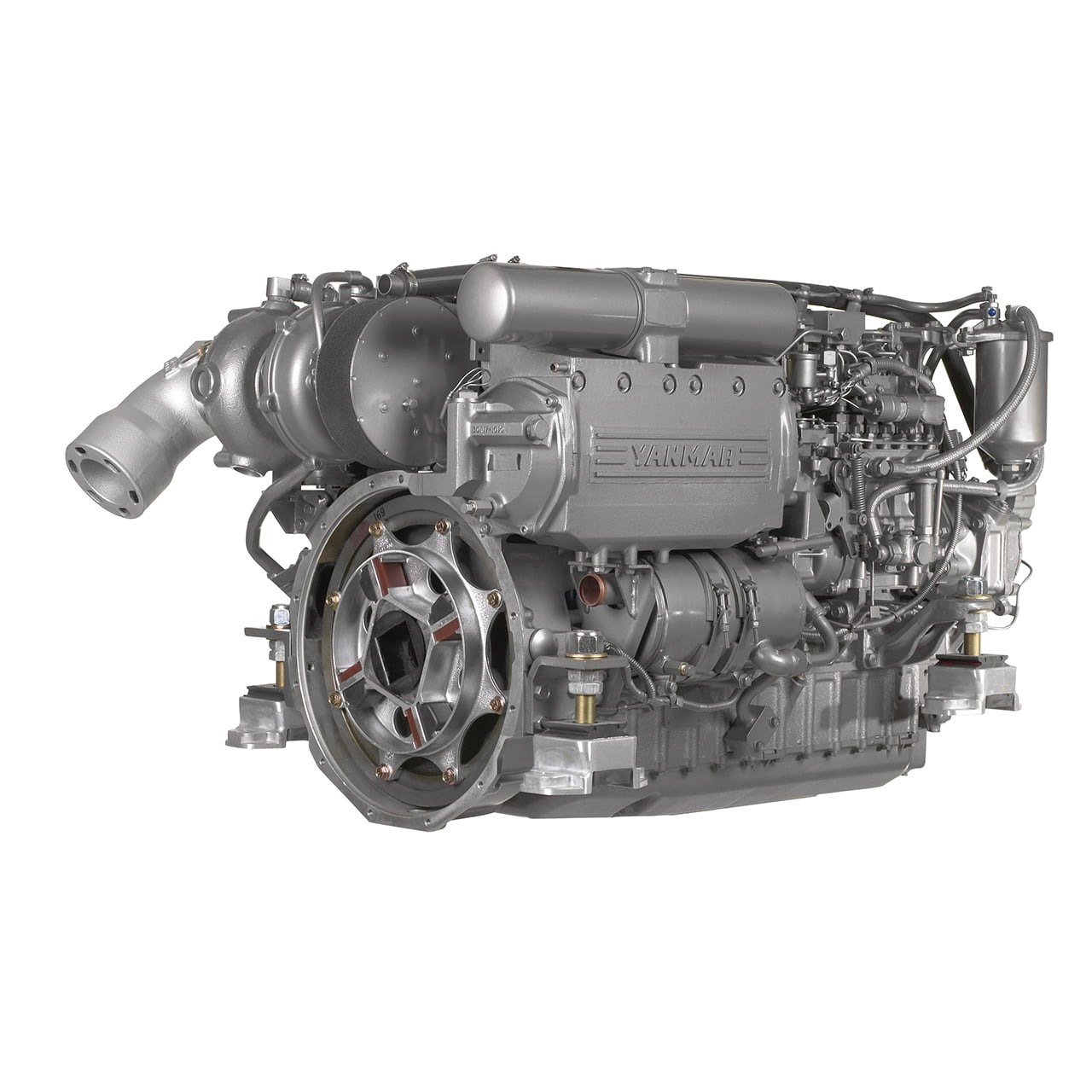

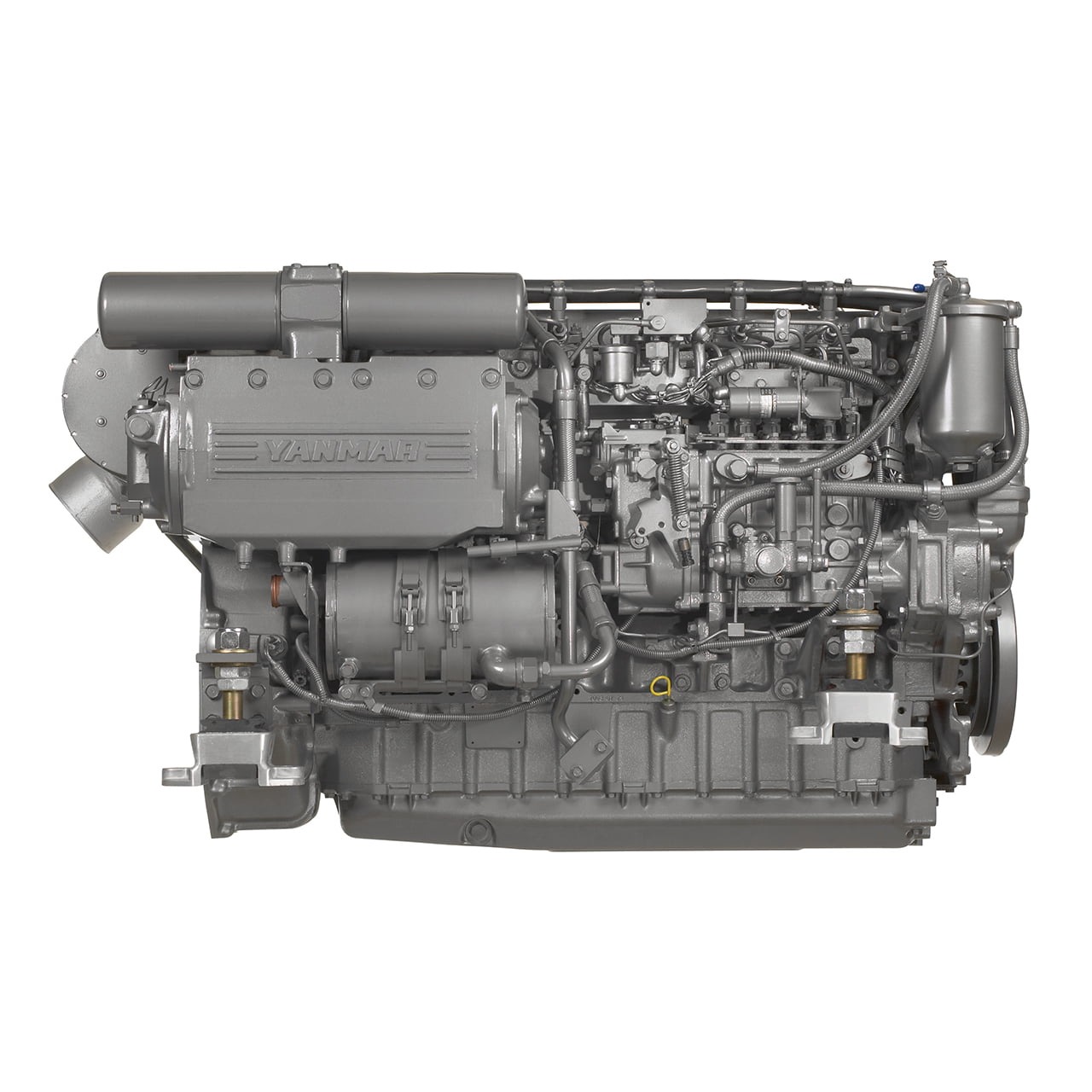

Buy YANMAR 6LY2A-STP Diesel Engine
Buy YANMAR 6LY2A-STP Diesel Engine
Specifications
Rated output324 kW / 440 mhp
Rated Speed3300 rpm
Displacement5.813 L / 354 cu. in
No. of cylinders6 cylinders
Cylinder Bore x Stroke106 mm x 110 mm / 4.17 in x 4.33 in
Combustion systemDirect Injection, In-line Pump
AspirationTurbocharged & Intercooled
Alternator12V – 80A
Dry weight without gear535 kg / 1179 lbs
Dimensions1428 mm x 692 mm x 736 mm
ControlsMechanical
CertificationsRCD 1 IMO Tier 2 EMC SOLAS
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 25°C at the inlet of the fuel injection pump (ISO 3046)
Length measured with KMH60A gearbox & high-riser elbow
(Dimensions may vary with other gears/elbow)
Description
Buy YANMAR 6LY2A-STP Diesel Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 80A
Optional Accessories
- High-riser mixing elbow [instead of L–elbow]
- Flexible mounts Barry
- Flexible mounts Bridgestone
- B/C/D–type instrument panel
- Extension wire harness [4m, 6m, 10m]
- Dual harness [for 2nd station]
- Sensor for VDO instrument panels
- SOLAS including Certificate [factory fit only]
- Lub oil evacuation pump
- Water separator
