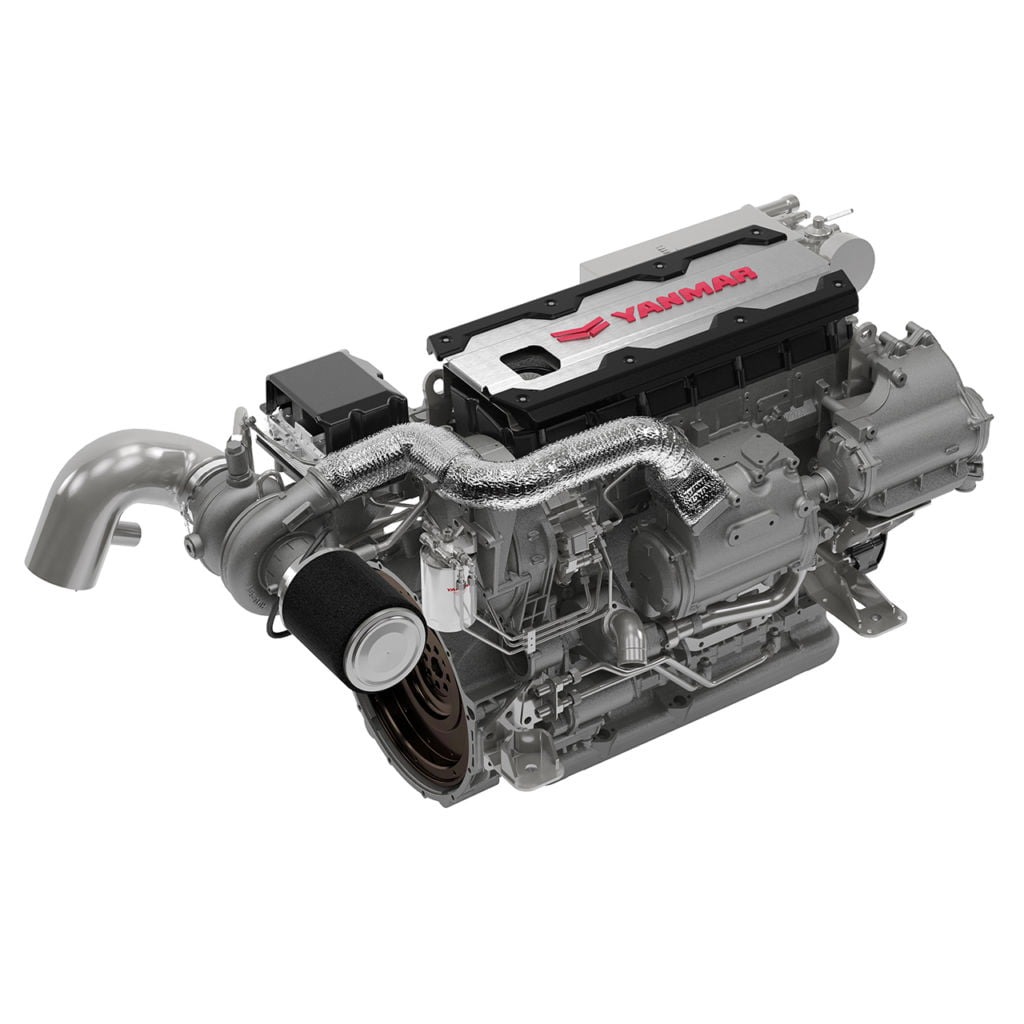

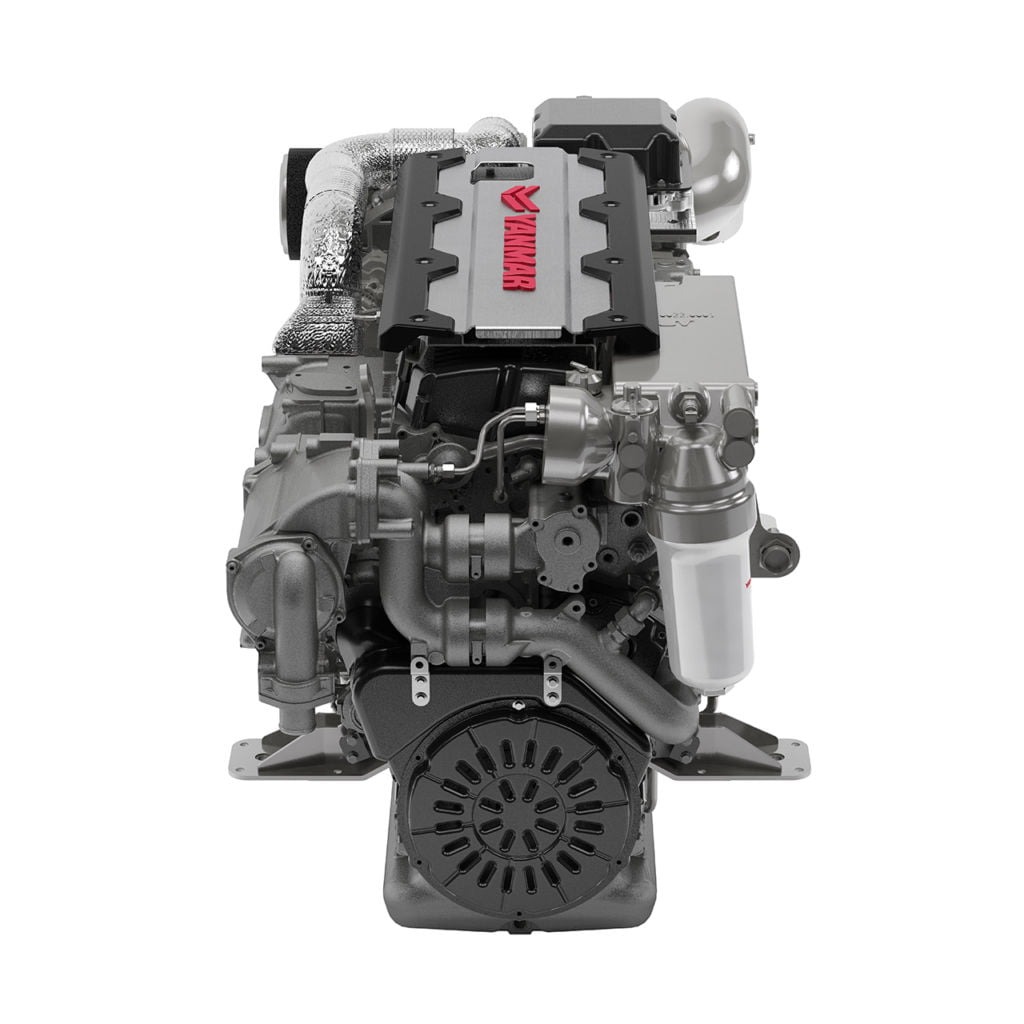

Buy YANMAR 6LT640 Diesel Engine
Buy YANMAR 6LT640 Diesel Engine
Specifications
Rated output470 kW / 640 mhp
Rated Speed2530 rpm
Displacement8.710 L / 531 cu. in
No. of cylinders6 cylinders
Cylinder Bore x Stroke117 mm x 135 mm / 4.60 in x 5.3 in
ConfigurationIn-line, 4-stroke, vertical, water-cooled diesel engine
Combustion systemDirect Injection, Bosch Common Rail System
AspirationTurbocharged & Intercooled
Alternator24V – 90A
Dry weight without gear1125 kg / 2480 lbs
ControlsElectronic
CertificationsRCD 2 IMO Tier 2 EPA Tier 3 EMC
NOTE:
**All data is subject to change without notice. Text and illustrations are not binding
HVO-approved engineDescription
Buy YANMAR 6LT640 Diesel Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- 24V Electric system [single pole]
- Exhaust mixing elbow [high riser]
- Mounting brackets
- Alternator 24V – 90A
- Fresh water expansion tank
- VC20 Vessel Control System
- Electronic CAN-bus control head
- VC20 Multi-function color display
- Switch Panel
- Backup Panel
