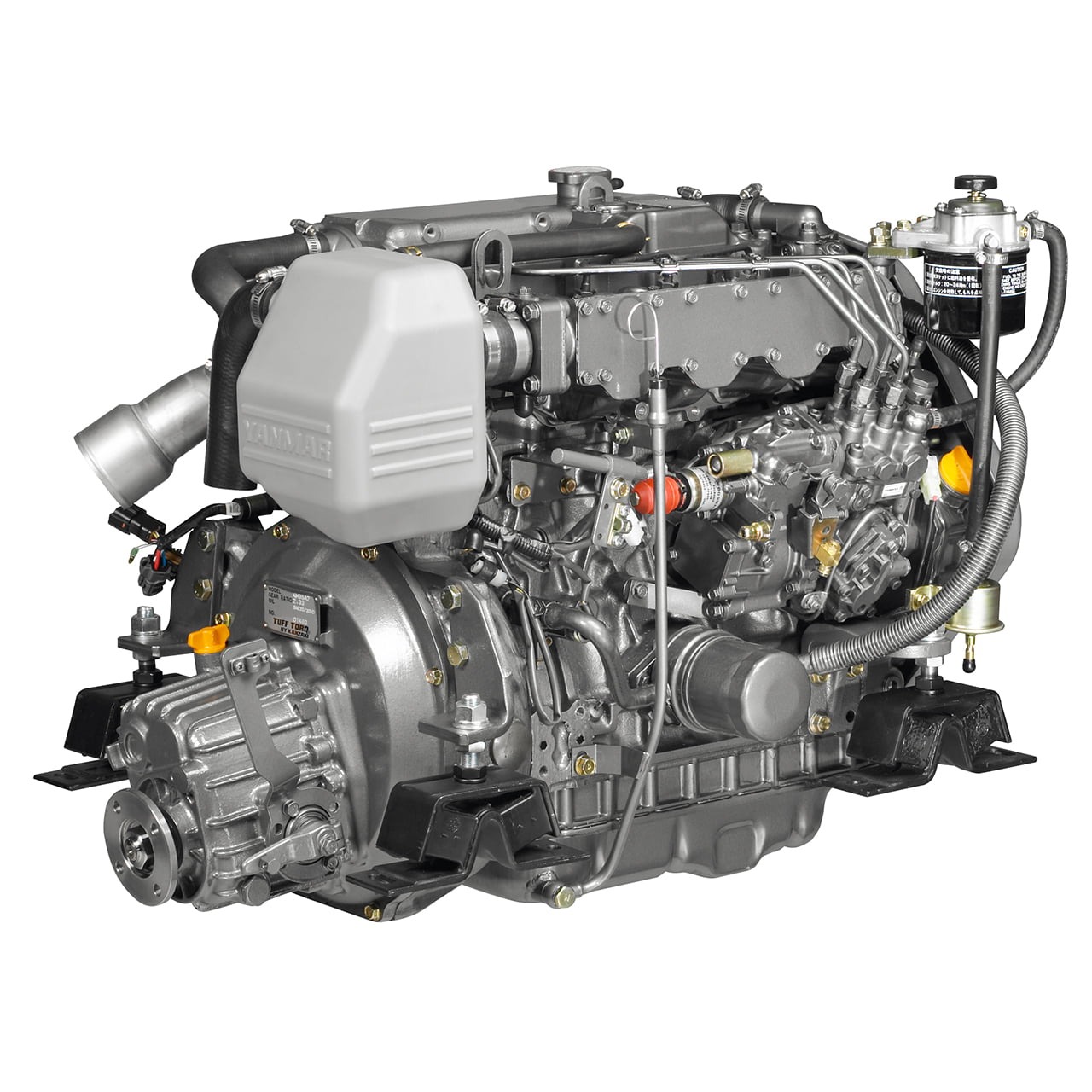

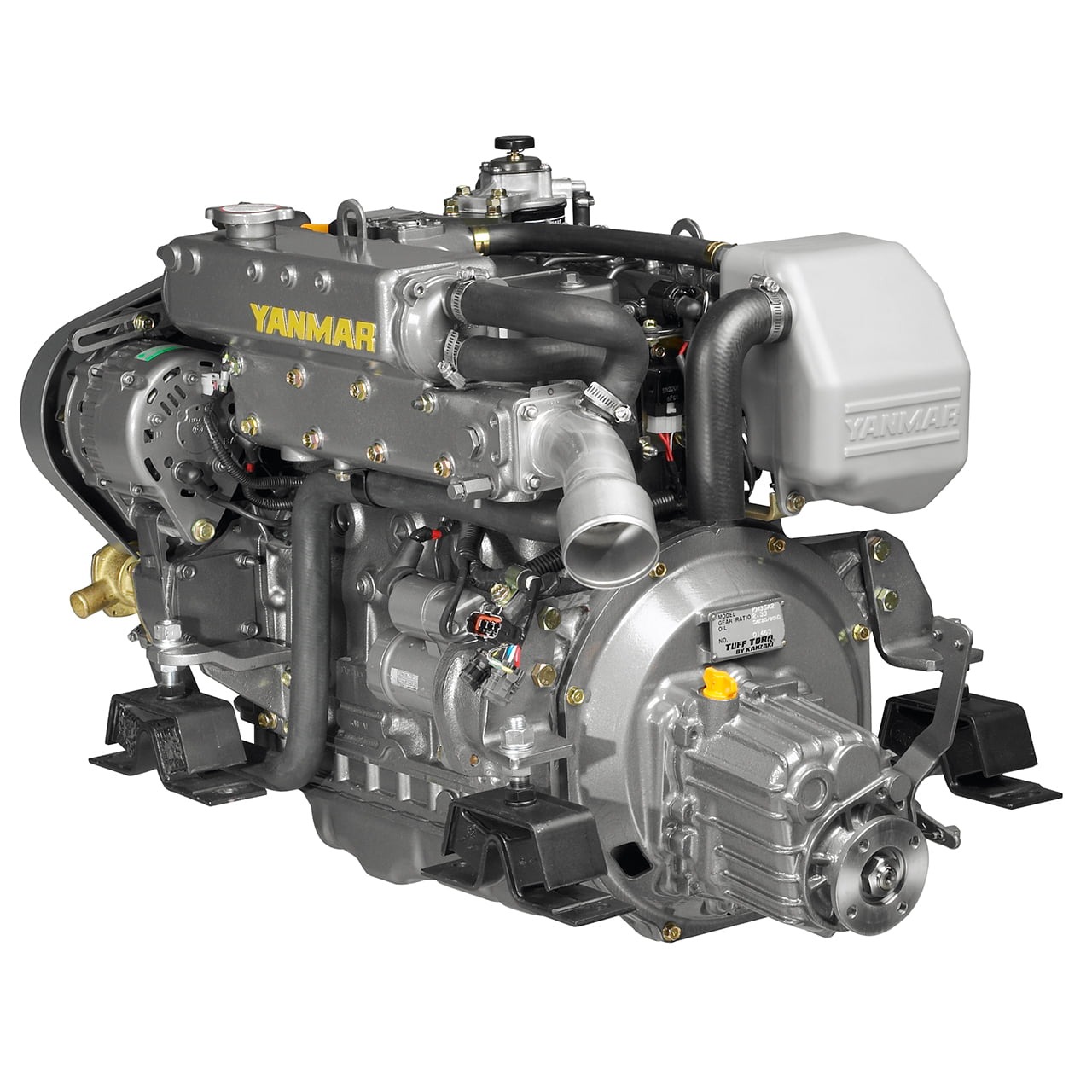

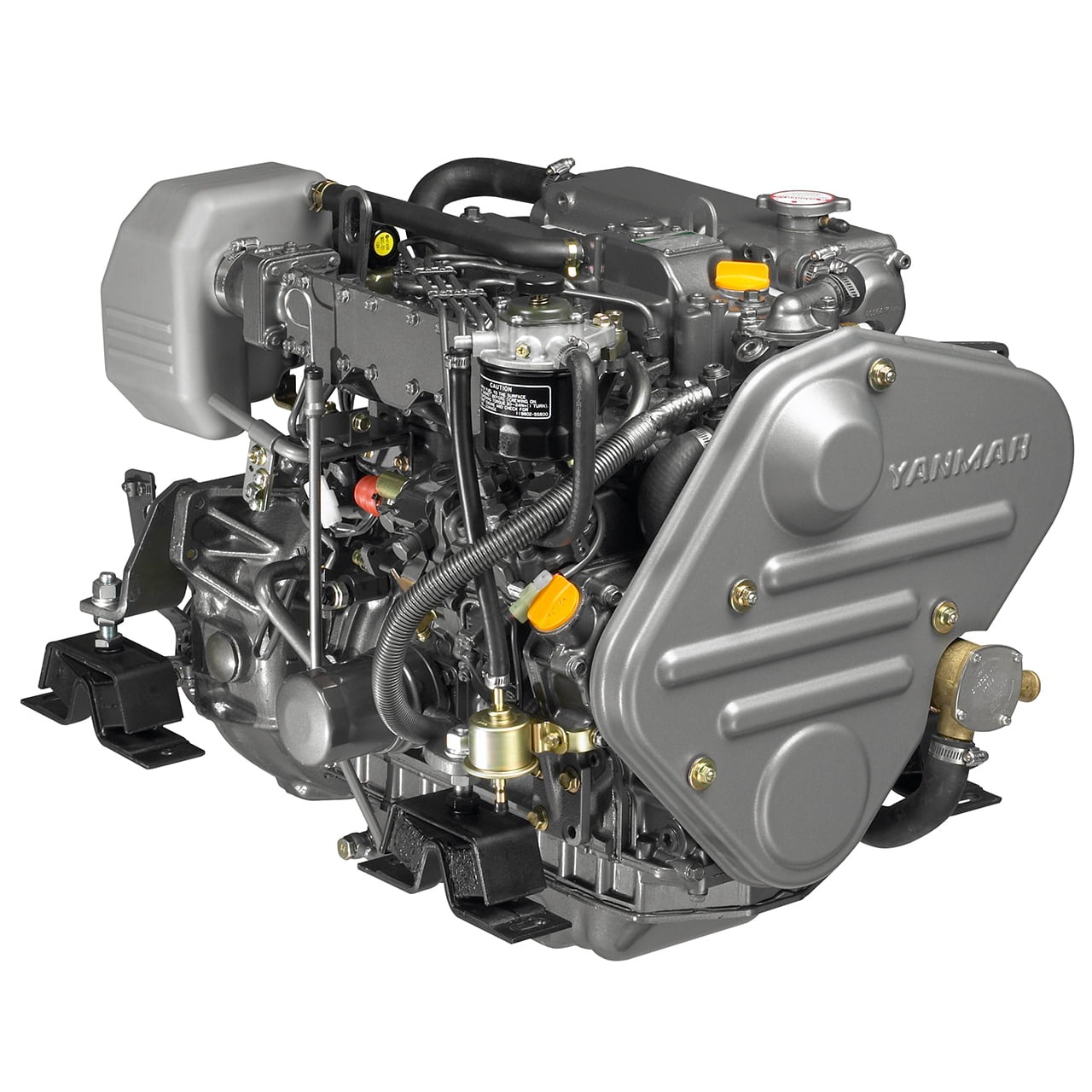

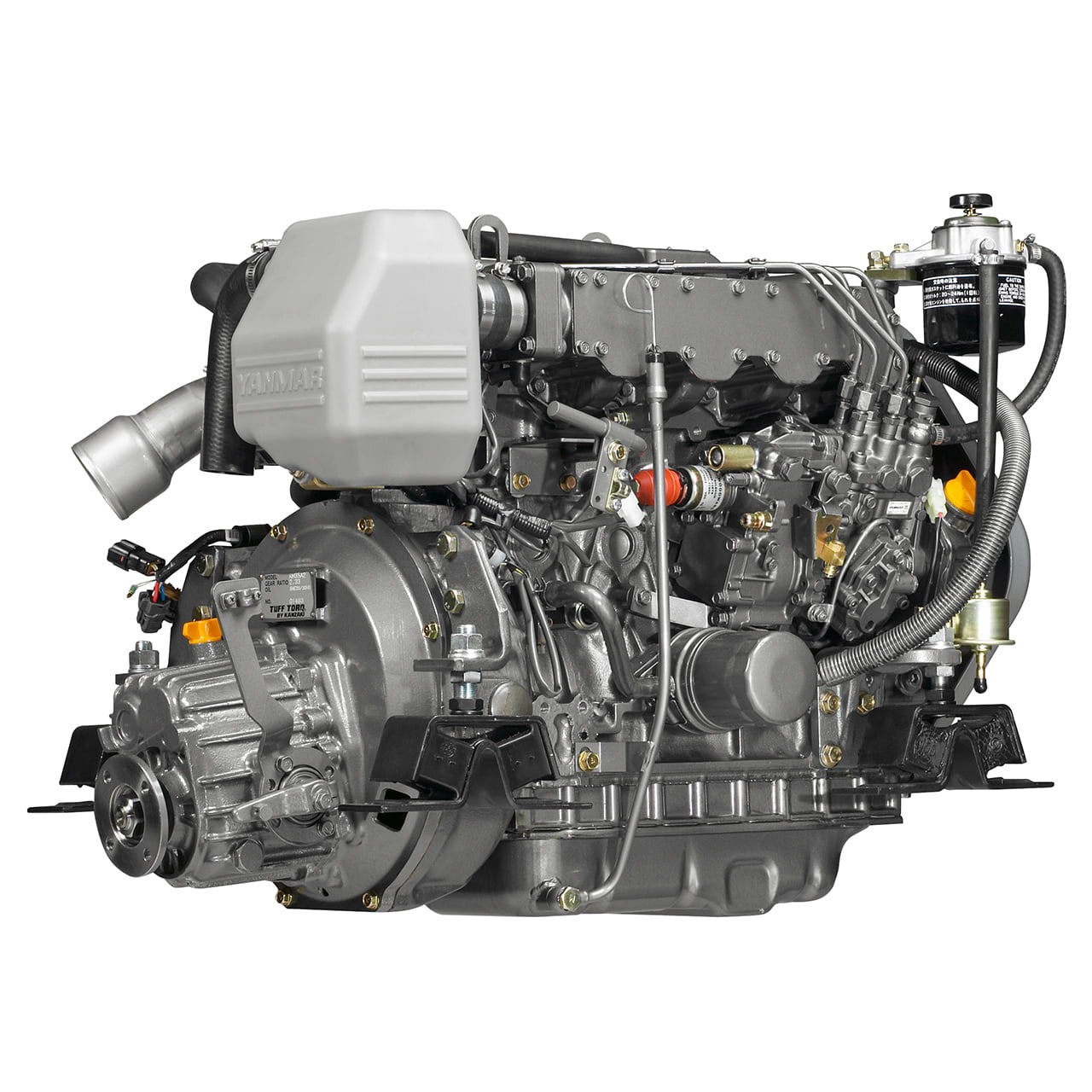

Buy YANMAR 4JH5E Marine Engine
Buy YANMAR 4JH5E Marine Engine
Specifications
Rated output39.6 kW / 53.8 mhp
Rated Speed3000 rpm
Displacement2.19 L / 134 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke88 mm x 90 mm / 3.46 in x 3.54 in
Combustion systemDirect Injection, Mono Plunger Pump
AspirationNatural
Alternator12V – 125A
Dry weight without gear201 kg / 443 lbs
Dimensions871 mm x 560 mm x 623 mm
ControlsMechanical
CertificationsRCD 1 EPA Tier 2 BSO II EMC
NOTE:
1 kW = 1.3596 mhp = 1.34102 bhp
Fuel condition: density at 15°C = 0.842 g/cm³
Technical data is according to (ISO 8665) / (ISO 3046)
Fuel temperature 40°C at the inlet of the fuel injection pump (ISO 8665)
Length includes KM35A marine gear
(Dimensions may vary with other gears/elbow)
Description
Buy YANMAR 4JH5E Marine Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- Exhaust mixing elbow [L–type]
- Alternator 12V – 125A
- B20 panel
- Flexible mounts
- Expansion tank for fresh water cooling system
- Electric stop solenoid
- Belt safety cover
Optional Accessories
- High–riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 130A or 24V – 75A including smart regulator
- C30 panel
- Extension wire harness [4m, 6m, 10m]
- Dual harness [for 2nd station]
- TFX Sidemount control head
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- Air heater [glow]
- On-board spare parts kit
