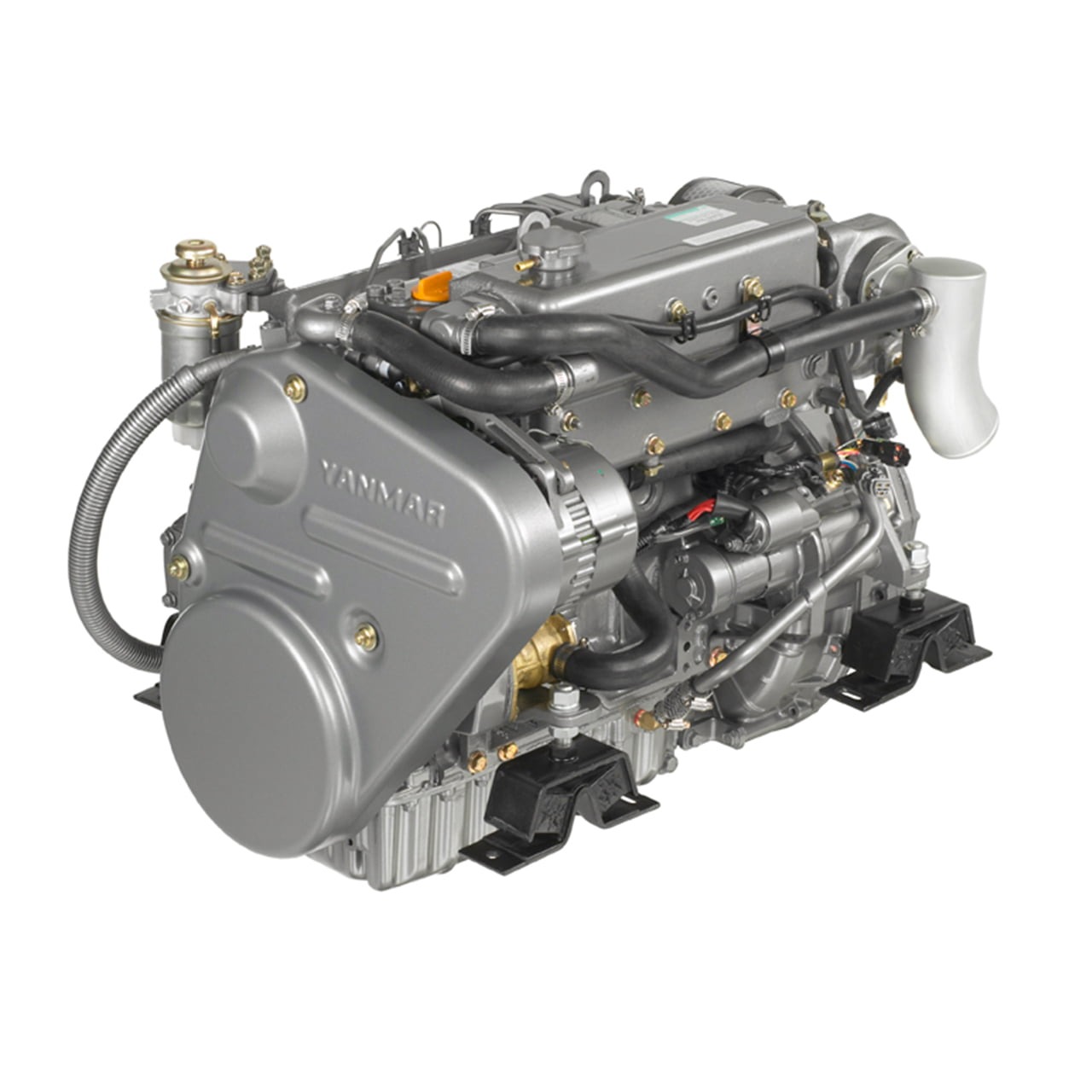

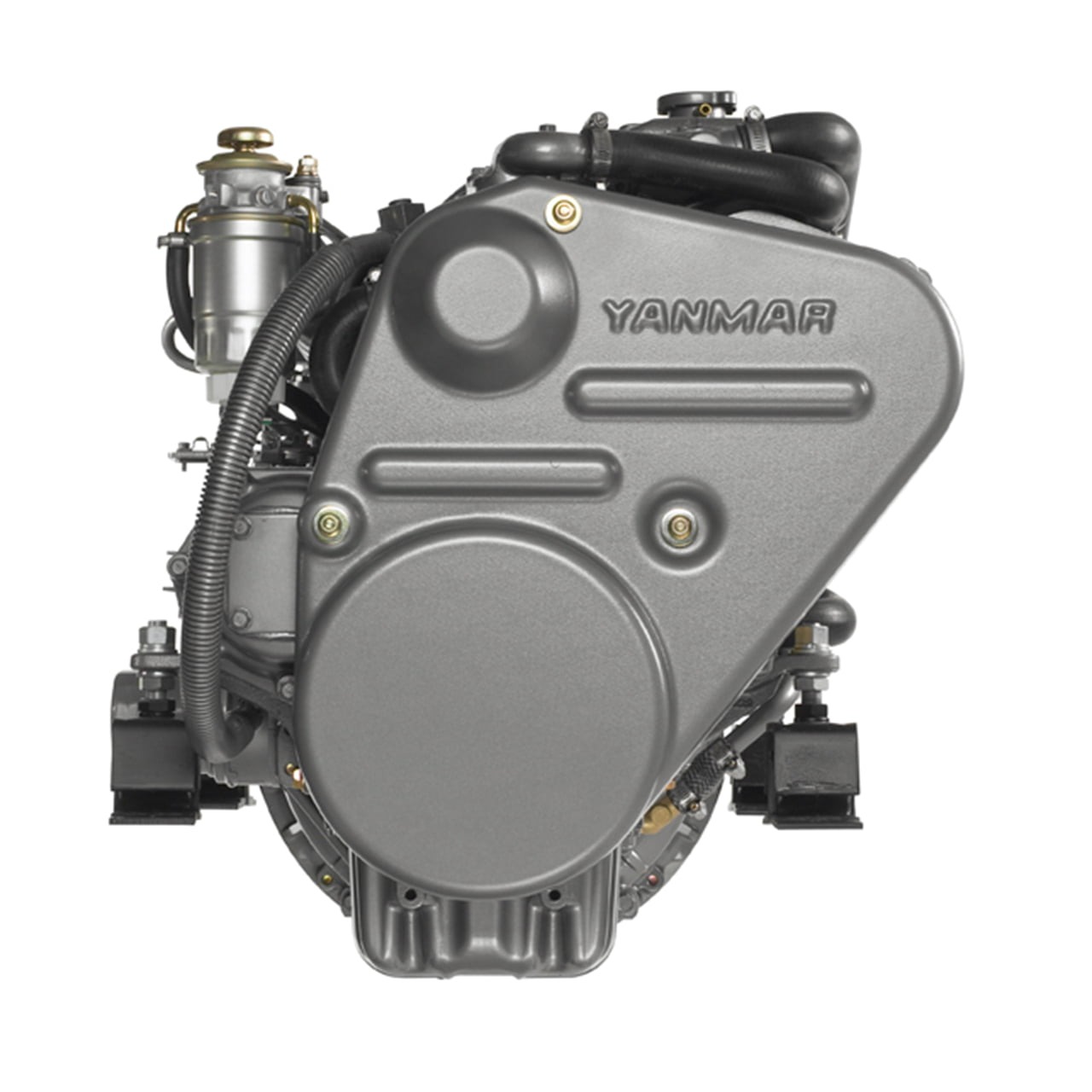

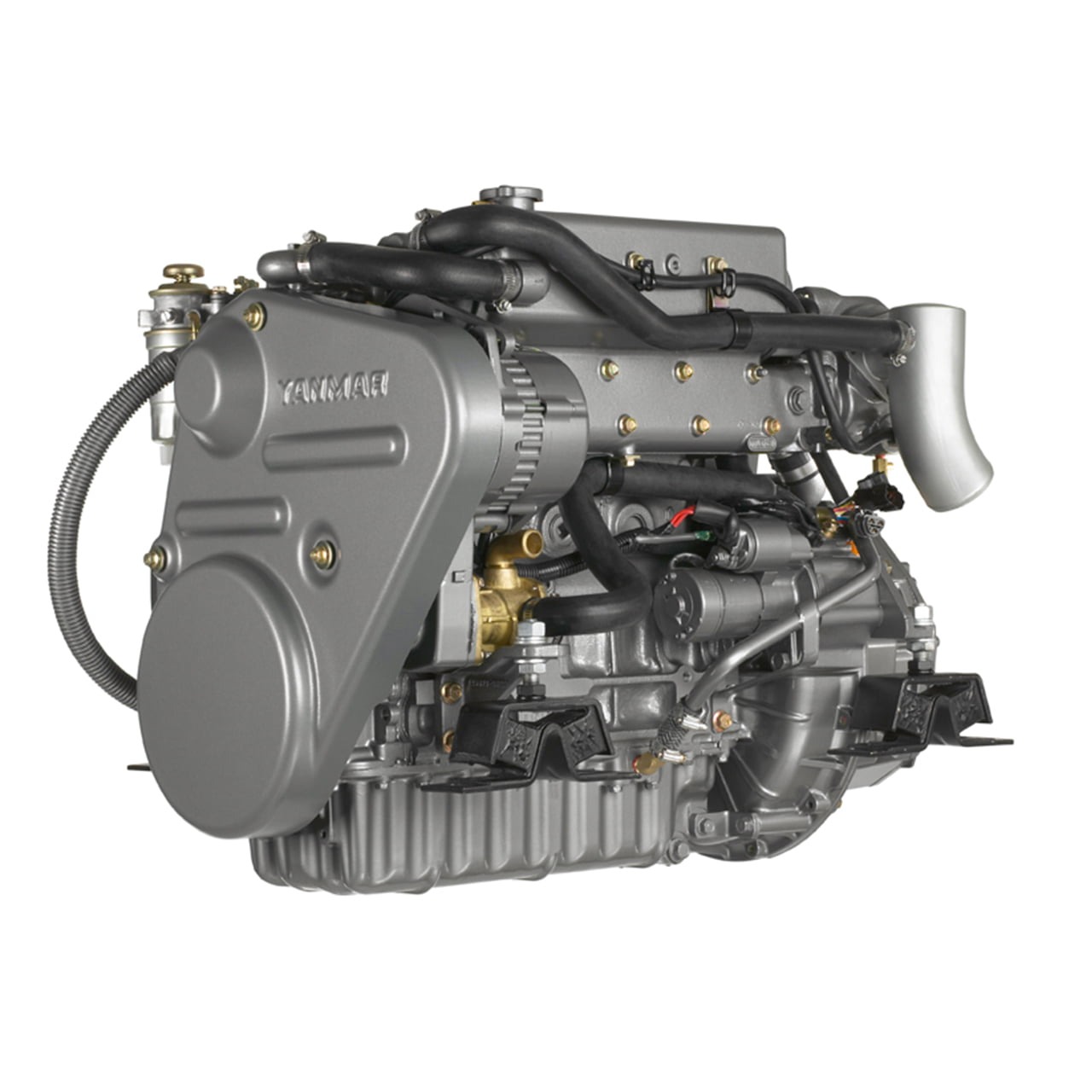

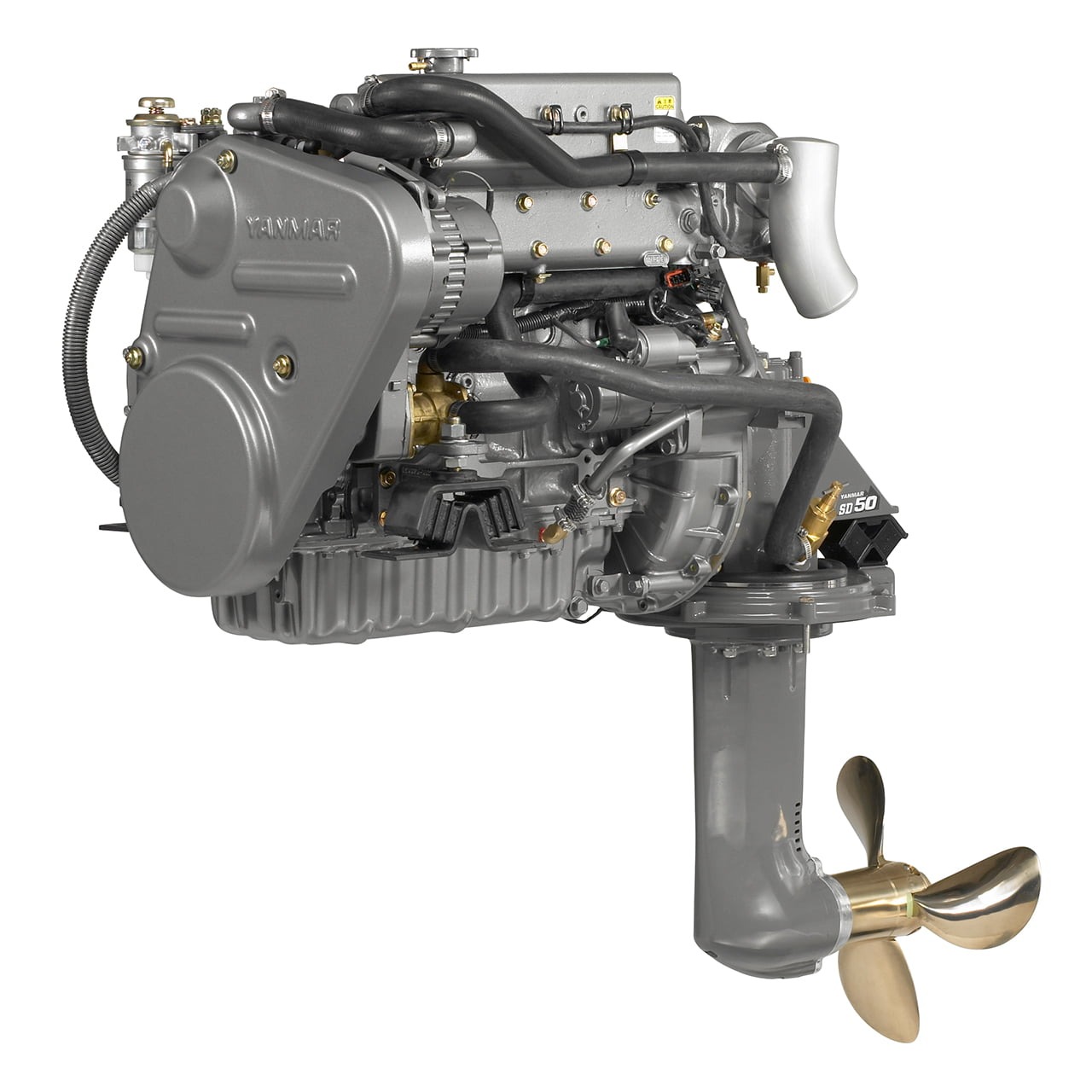

Buy YANMAR 4JH4-HTE Marine Engine
Buy YANMAR 4JH4-HTE Marine Engine
Specifications
Rated output80.9 kW / 110 mhp
Rated Speed3200 rpm
Displacement1.995 L / 121.7 cu. in
No. of cylinders4 cylinders
Cylinder Bore x Stroke84 mm x 90 mm / 3.31 in x 3.54 in
Combustion systemDirect Injection, Bosch Distributor Type VE Pump
AspirationTurbocharged & Intercooled
Alternator12V – 125A
Dry weight without gear217 kg / 478 lbs
Dimensions933 mm x 661 mm x 659 mm
ControlsMechanical
CertificationsRCD 1 EPA Tier 2 BSO II EMC SOLAS
Description
Buy YANMAR 4JH4-HTE Marine Engine
Performance Curves
Technical Drawings
Packages
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 125A
- B20 panel
- Flexible mounts
- Expansion tank for fresh water cooling system
- Electric stop solenoid
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 130A or 24V – 75A including smart regulator
- C30 panel
- Extension wire harness [4m, 6m, 10m]
- Dual harness [for 2nd station]
- TFX Sidemount control head
- SOLAS including Certificate [factory fit only]
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- Air heater [glow]
- Trolling valve [only for KMH4A]
- On-board spare parts kit.
